Rear Diff Gear Side Thrust Washer Modification (TS 3-06 11080)

Publication date: 1970-01-01
Reference number: TS 3-06 11080

REAR DIFF GEAR SIDE THRUST WASHER MODIFICATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 3-06 11080

MODIFICATION OF SIDE THRUST WASHER OF THE REAR DIFFERENTIAL GEAR

Model: 1989 SIDEKICK

Bulletin No: TS 3-06 11080

Group: POWERTRAIN

VIN INFORMATION

Beginning Production Date: 12/89 AND LATER

Beginning VIN: JS3(4)TA01C_L4131530 & JS3(4)TA01V_L4131093

SERVICE INFORMATION

The purpose of this bulletin is to provide you with the following changes of the side thrust washer of the rear differential gear:

Parts Change
Service Procedure Change

PARTS CHANGE

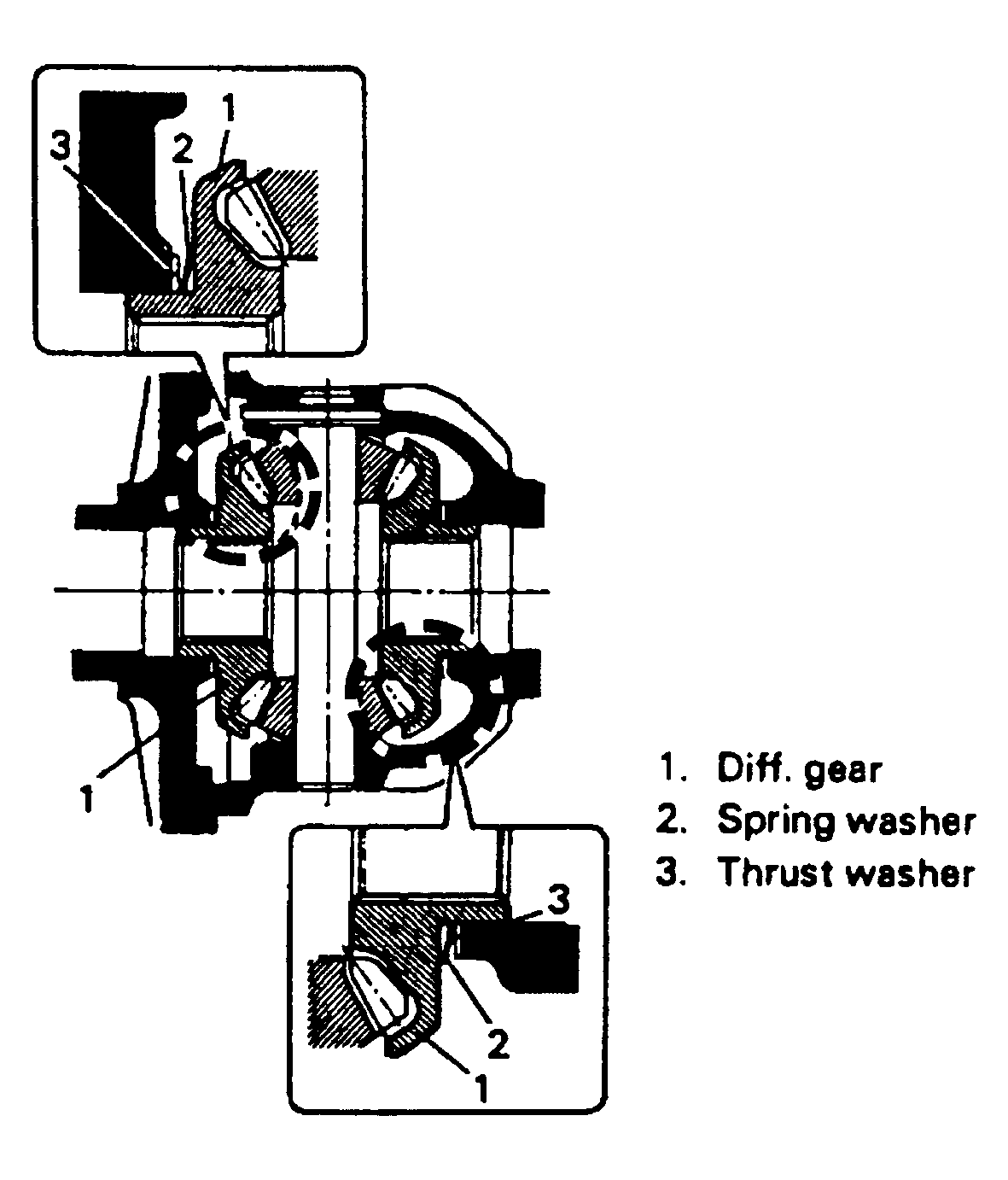

Fig 1: Thrust Washer Location

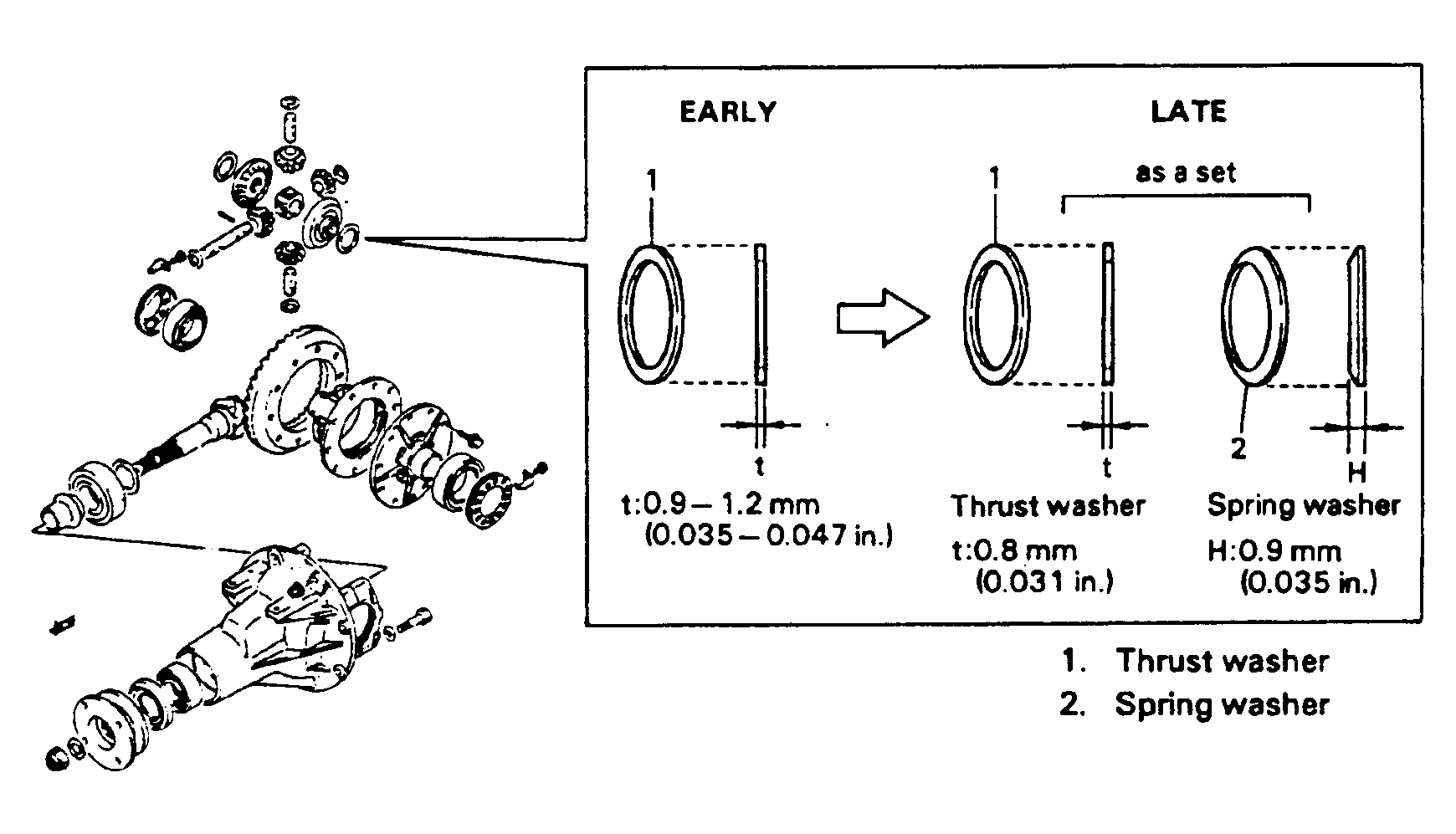

Fig 2: PARTS SUPPLY DATA

SERVICE PROCEDURE CHANGE

A. Install late type spring washer and thrust washer as shown in Fig 3 .

B. Apply a little oil to differential pinion, gear, shaft, and washer.

Fig 3: Location of Spring and Thrust

C. Install differential pinion and gear on the right case and verify that they turn smoothly. (See Fig 4 ).

Fig 4: Differential Right Case

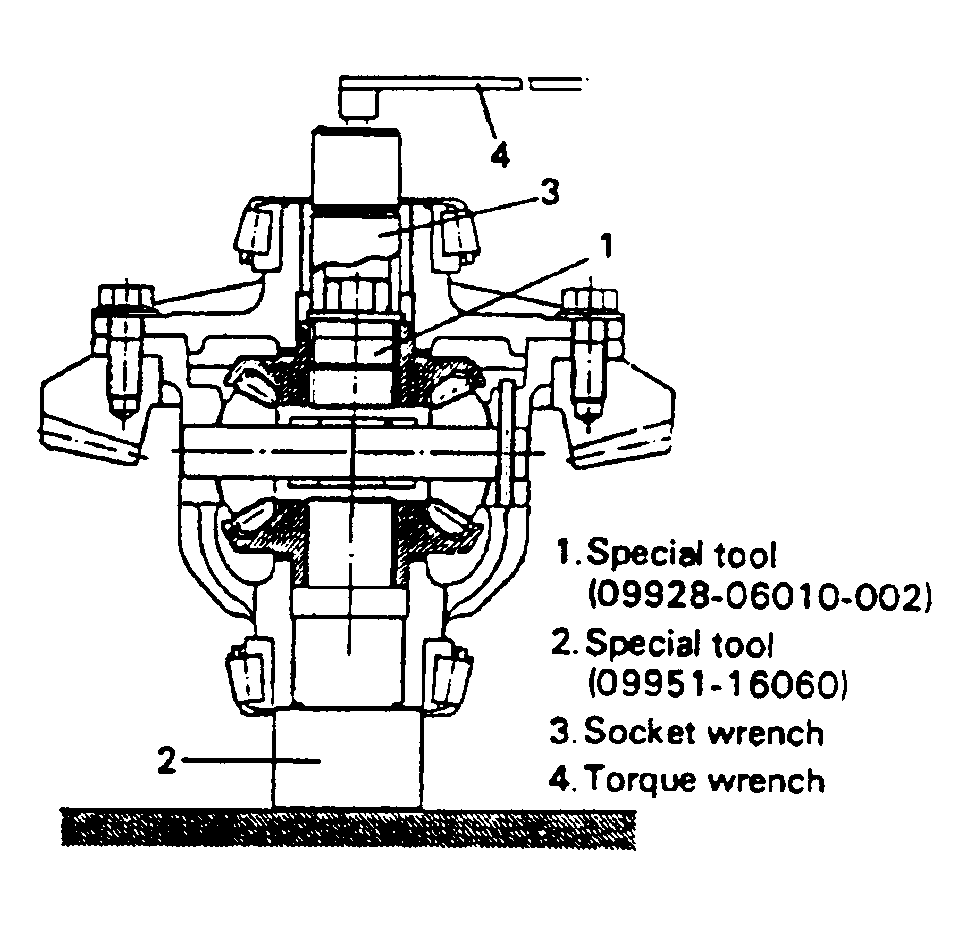

D. Tighten differential bevel gear bolts to the torque specification and then check that differential side gear (left side) preload is within the specified range. (See Fig 5 ).

Fig 5: Differential Bevel Gear Cut Away

TORQUE SPECIFICATIONS

Bevel gear bolts: 90 - 100 Nm, 9.0 - 10.0 kg-m, 65.5 - 72.0 lb-ft

Diff side gear (left side) preload 0-2.5 Nm, 0-2.5 kg-cm, 0-21.7 lb-ft
