CAMSHAFT & VALVE ROCKER ARMS MODIFICATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 4-02 03109, Date of Issue:

MODIFICATION OF CAMSHAFT AND VALVE ROCKER ARM

Model(s): 1989 SUZUKI SAMURAI

Bulletin No.: TS 4-02 03109

Group: Engine Mechanical

SERVICE INFORMATION

The camshaft and valve rocker arms have been modified in 1989 Samurai vehicles. When replacing these components, it is necessary to use the corresponding part for that year vehicle.

PARTS INFORMATION

DESCRIPTION	1986-1988	1989	QTY
Camshaft	12710-83000	12710-83010	1
Rocker Arm	12841-82000	12841-60A01	8

INTERCHANGEABILITY

Individual components are not interchangeable.
Components as a set may be interchanged.

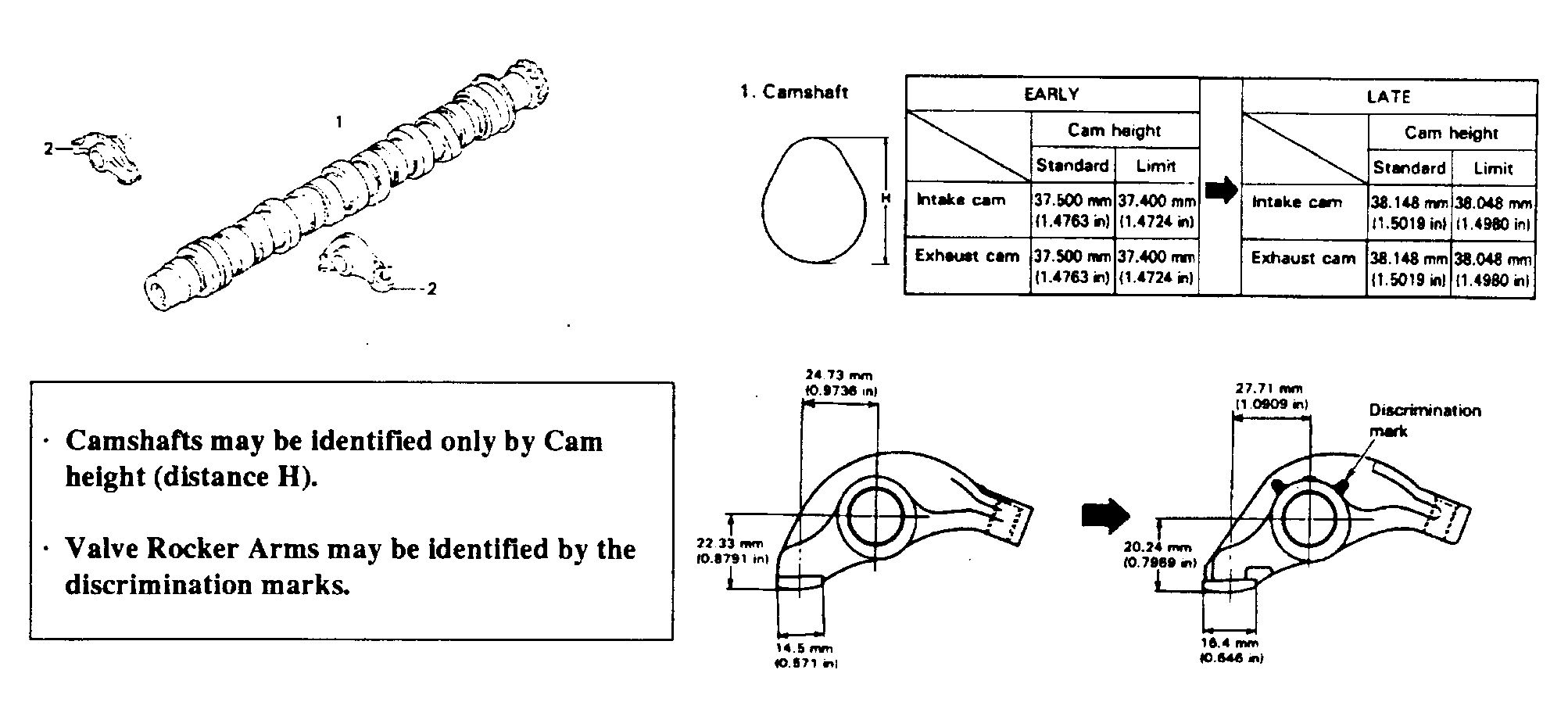

Fig 1: Camshaft and Valve Rocker Specifications and Identification
