Front Differential Oil Level Plug Modification (TS 3-03 03150)
Publication date: 1970-01-01Reference number: TS 3-03 03150
FRONT DIFFERENTIAL OIL LEVEL PLUG MODIFICATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 3-03 03150, Date of Issue:
MODIFICATION OF FRONT DIFFERENTIAL OIL LEVEL PLUG
Model(s): 1989 Suzuki Samuri, Sidekick
Bulletin No.: TS 3-03 03150
Group: Powertrain
VIN INFORMATION
| Beginning Production Date: | 4/89 AND LATER |
| Beginning VIN: | JS3(4)TAO1C K4117683 |
| JS3(4)TAO1V K4107856 | |

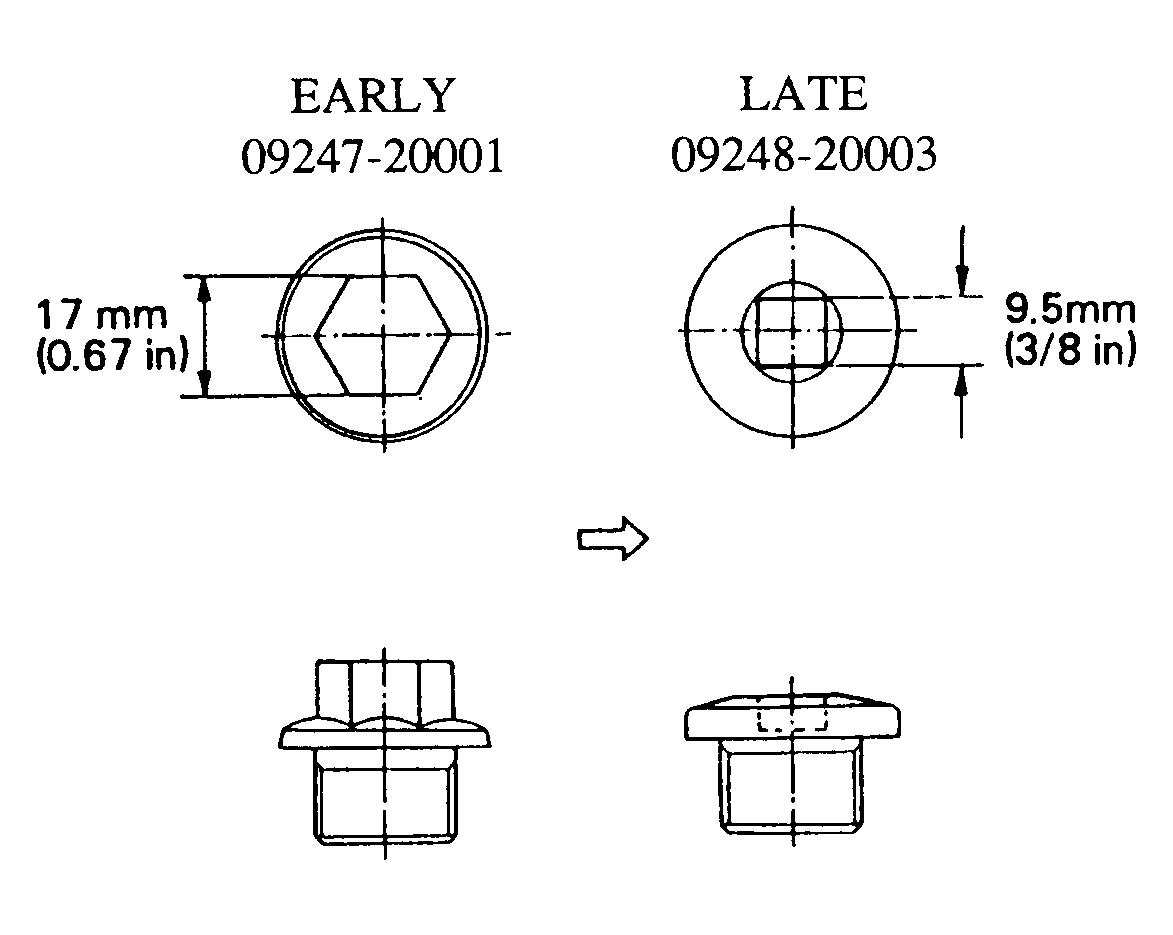

| Beginning with the above production date and serial numbers the Front Differential oil level plug has been changed to match the type currently used in the rear differential. | |
TORQUE SPECIFICATION
| Application | Tightening Torque |
|---|---|
| Front, rear oil level plug | 35-45 Nm, 3.5-4.5 Kg-m, 25.5-32.5 lb-ft |
