Temperature Control Lever - Samurai

The temperature control lever mechanically controls the flow of engine coolant entering the heater core, thus regulating the air temperature entering the passenger compartment.

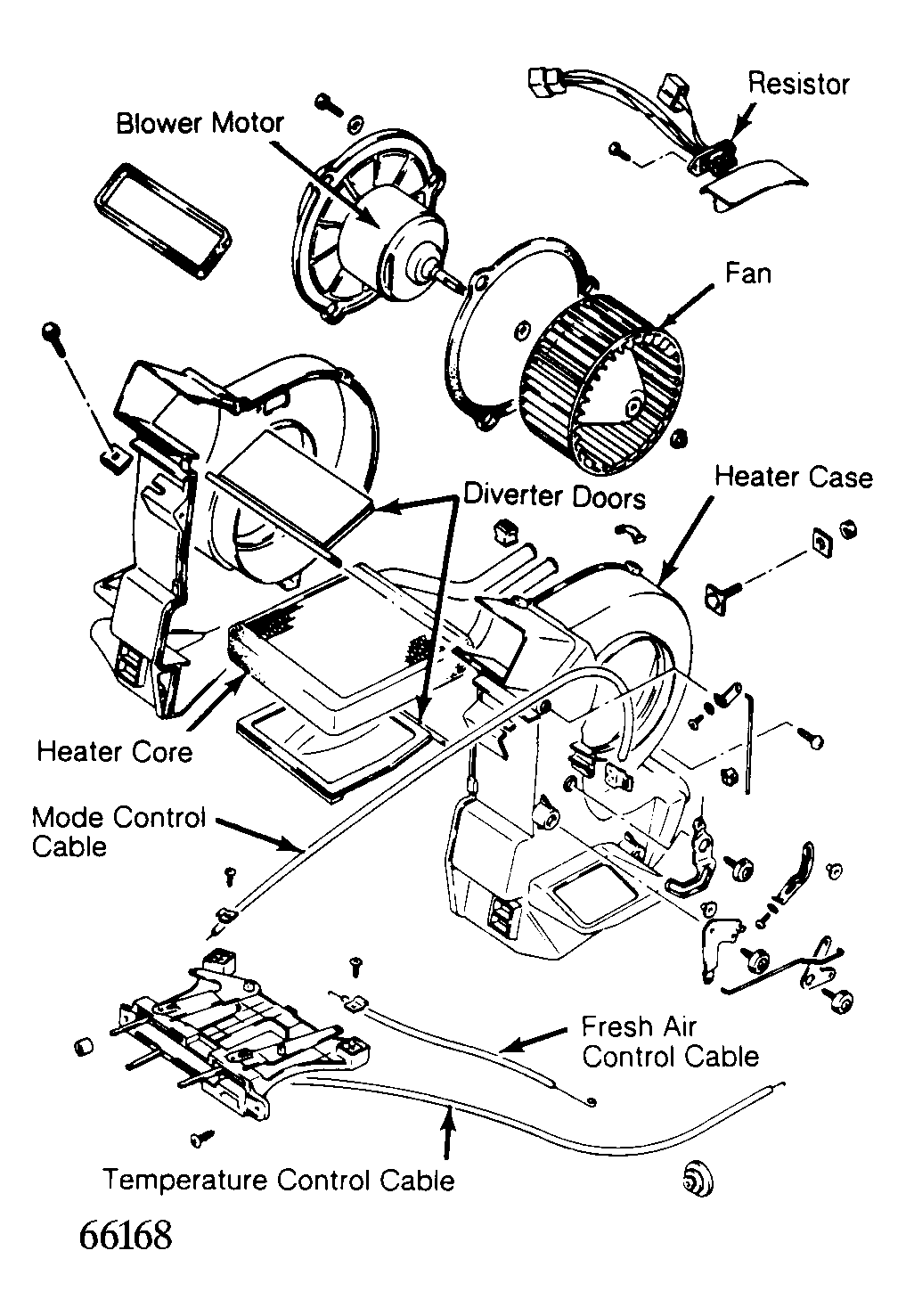

Fig 1: Exploded View of Samurai Heater & Blower Motor Assemblies
G66168Courtesy of SUZUKI OF AMERICA CORP.
