Vacuum Hose Diagram(S)

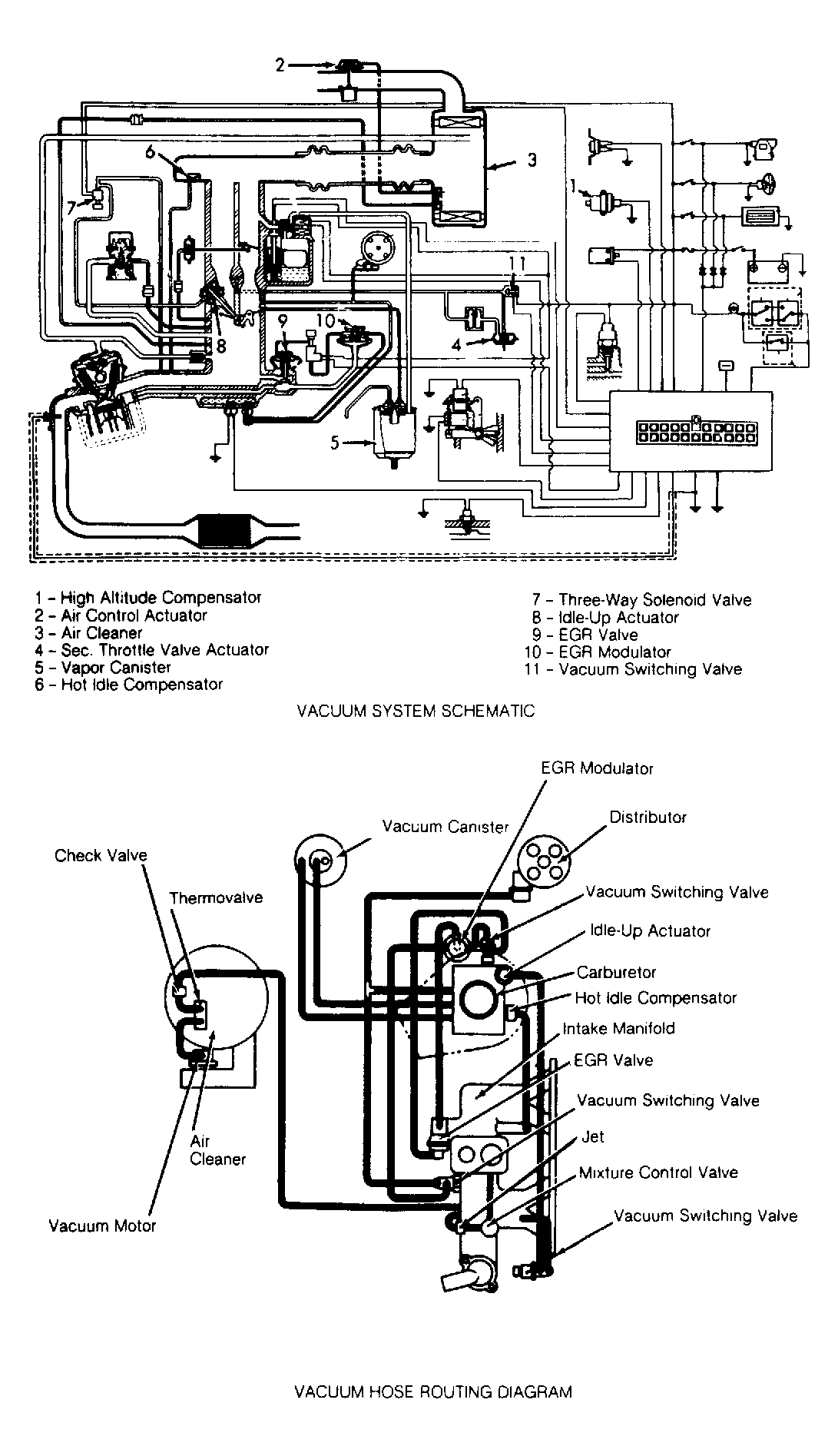

Fig 1: Samurai 1.3L Vacuum Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
