Transfer Gear Shift Control Lever Modification (TS 3-06 08070)
Publication date: 1970-01-01Reference number: TS 3-06 08070
TRANSFER GEAR SHIFT CONTROL LEVER MODIFICATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 3-06 08070, Date of Issue:
MODIFICATION OF TRANSFER GEAR SHIFT CONTROL LEVER
Model(s): 1988-on Suzuki Samurai
Group: Power Train
Bulletin No: TS 3-06 08070
SERVICE INFORMATION

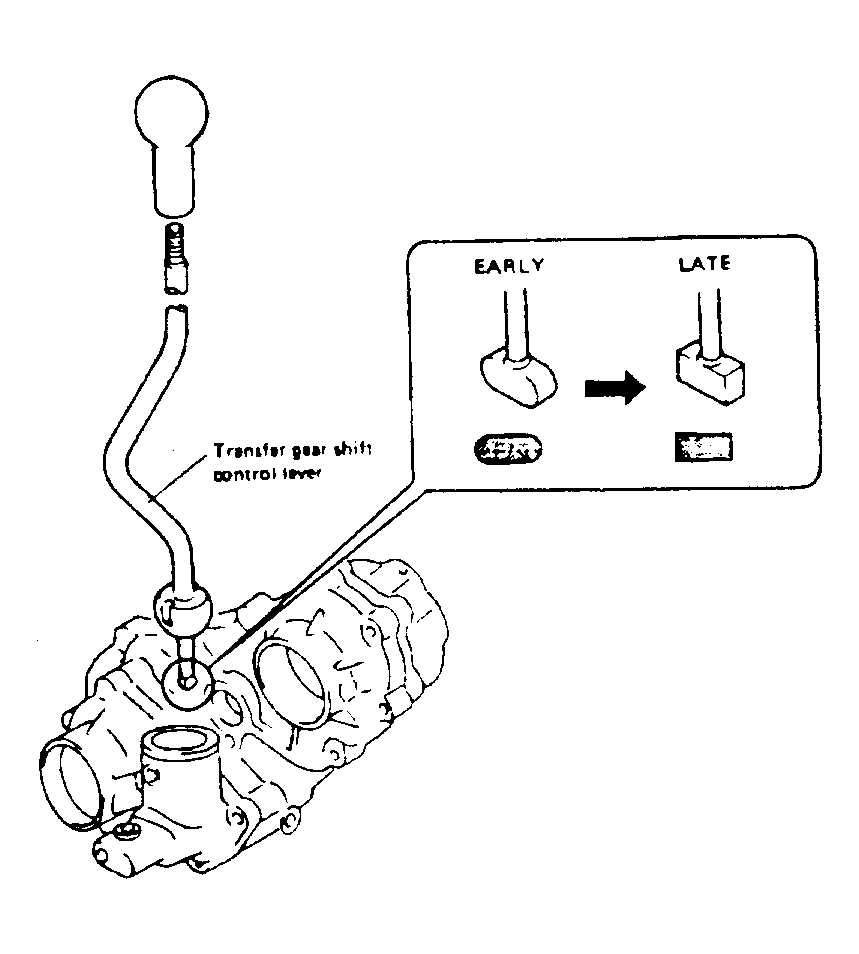

The purpose of this bulletin is to inform you of the transfer gear shift control lever modification, which has been effective since the December 1987 production. Fig 1 illustrates this change.
Beginning Production Date: 12/87
PARTS INFORMATION
PARTS INFORMATION
| Part Name | Early P/N | Late P/N | Qty | Supply of Spare Parts | Interchangeability |
|---|---|---|---|---|---|
| Transfer gear shift control lever | 29341-80050 | 29341-80051 | 1 | Late only | Late to early ok |
