CHRYSLER Motors & MITSUBISHI

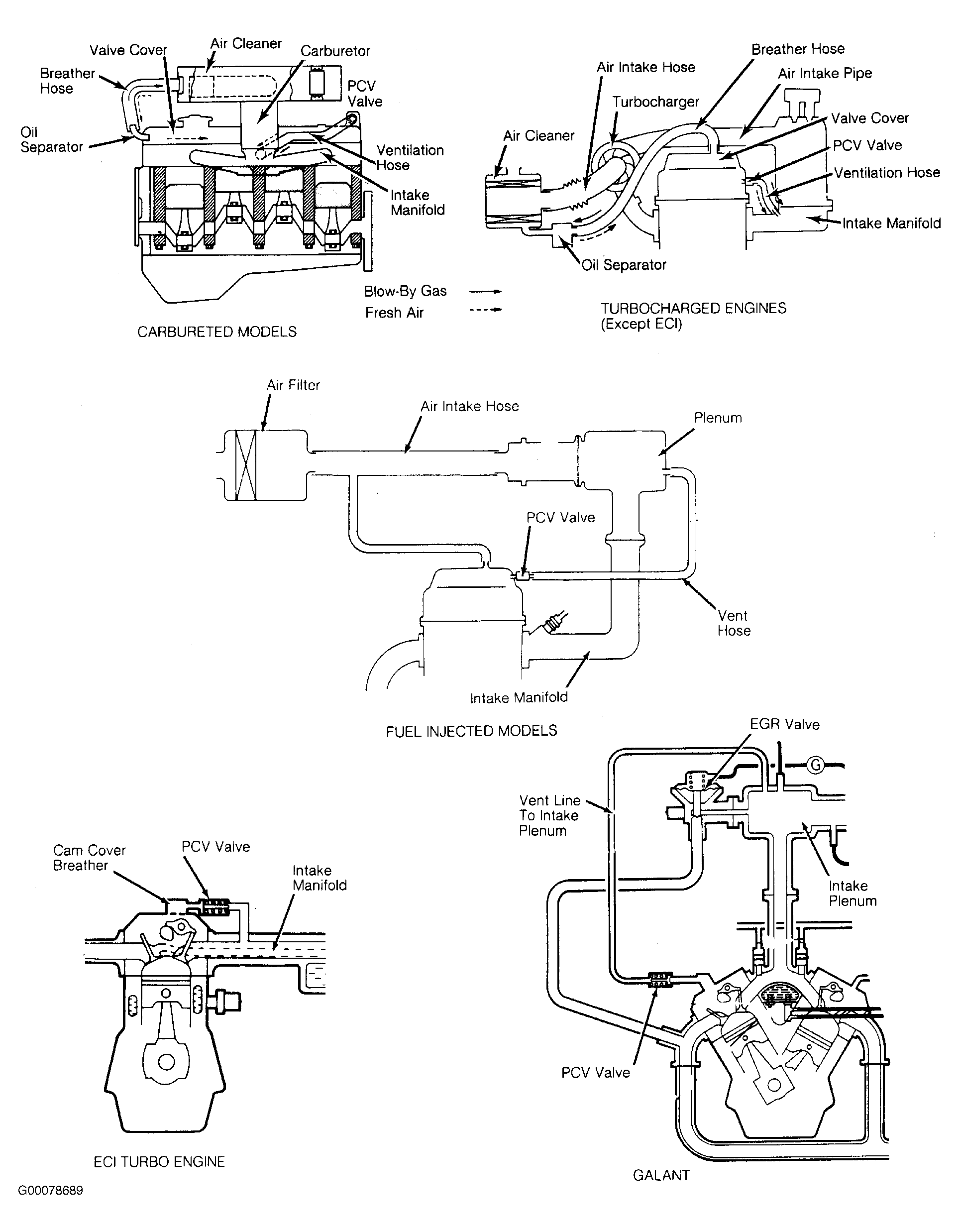

Fig 1: Crankcase Ventilation System (Chrysler Motors & Mitsubishi - Typical)
G00078689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
