Air Gap

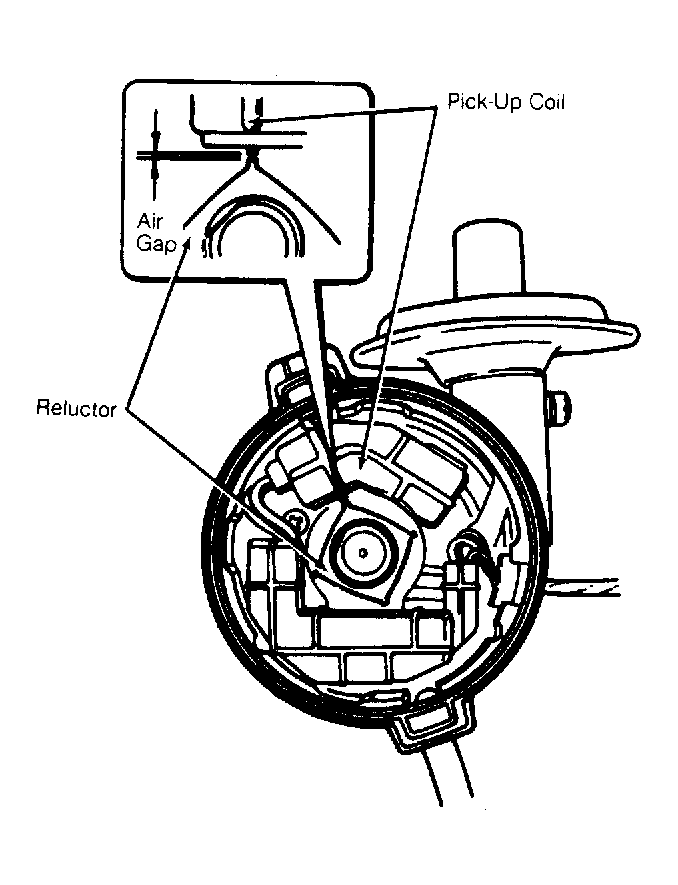

- Using a flat, non-magnetic feeler gauge, ensure air gap between pick-up coil and reluctor is .008-.016" (.20-.40 mm). Refer to Fig 1.
- If air gap is incorrect, remove ignition module and loosen screws securing pick-up coil. Move pick-up coil and adjust air gap to specification.
