Wide Open Microswitch

  1. Connect ohmmeter to wide open microswitch connector. See Fig 1 . Ohmmeter should read zero ohm. With throttle valve fully opened, ohmmeter should read infinity. If not within specifications, replace microswitch.

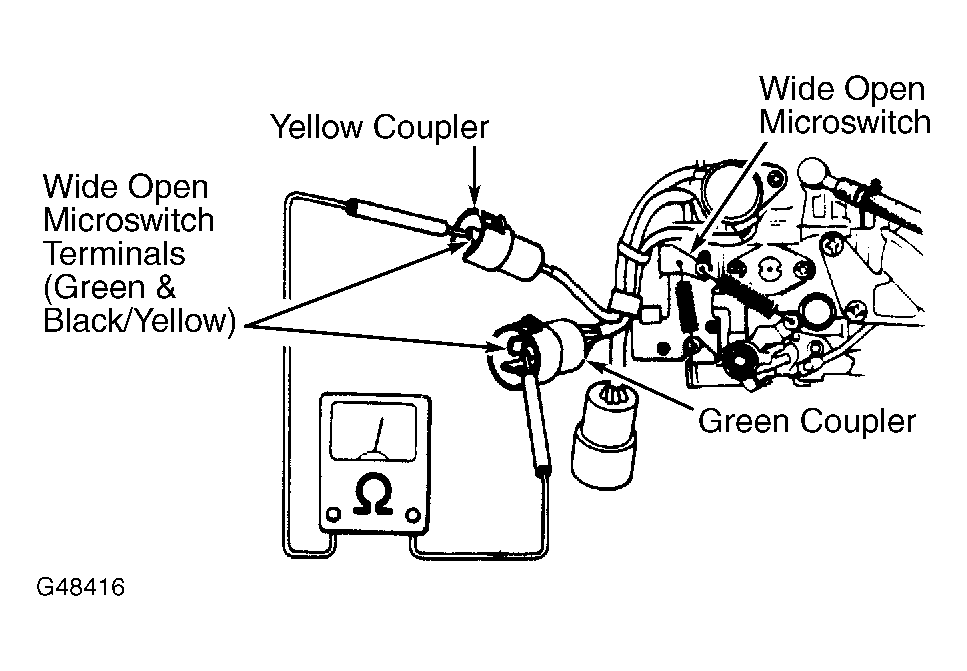

    Fig 1: Testing Wide Open Microswitch
    G48416Courtesy of SUZUKI OF AMERICA CORP.
  2. Open throttle valve gradually until ohmmeter reads infinity. Measure throttle valve-to-carburetor clearance. Clearance should be .24-.28" (6.0-7.2 mm). See Figure . If clearance is not within specifications, adjust by bending lever. See Figure . With check completed, install carburetor.
