Carburetor - DFB 306 2-Barrel HITACHI: Specifications

FLOAT LEVEL

Application	In. (mm)
Samurai	.31 (7.9)

ACCELERATOR CABLE FREE PLAY

Application

In. (mm)

Samurai

⁽¹⁾ .12-.19 (3.0-4.8)

⁽¹⁾	Accelerator cable free play with choke activated is .40-.59" (10.2-15.0 mm).

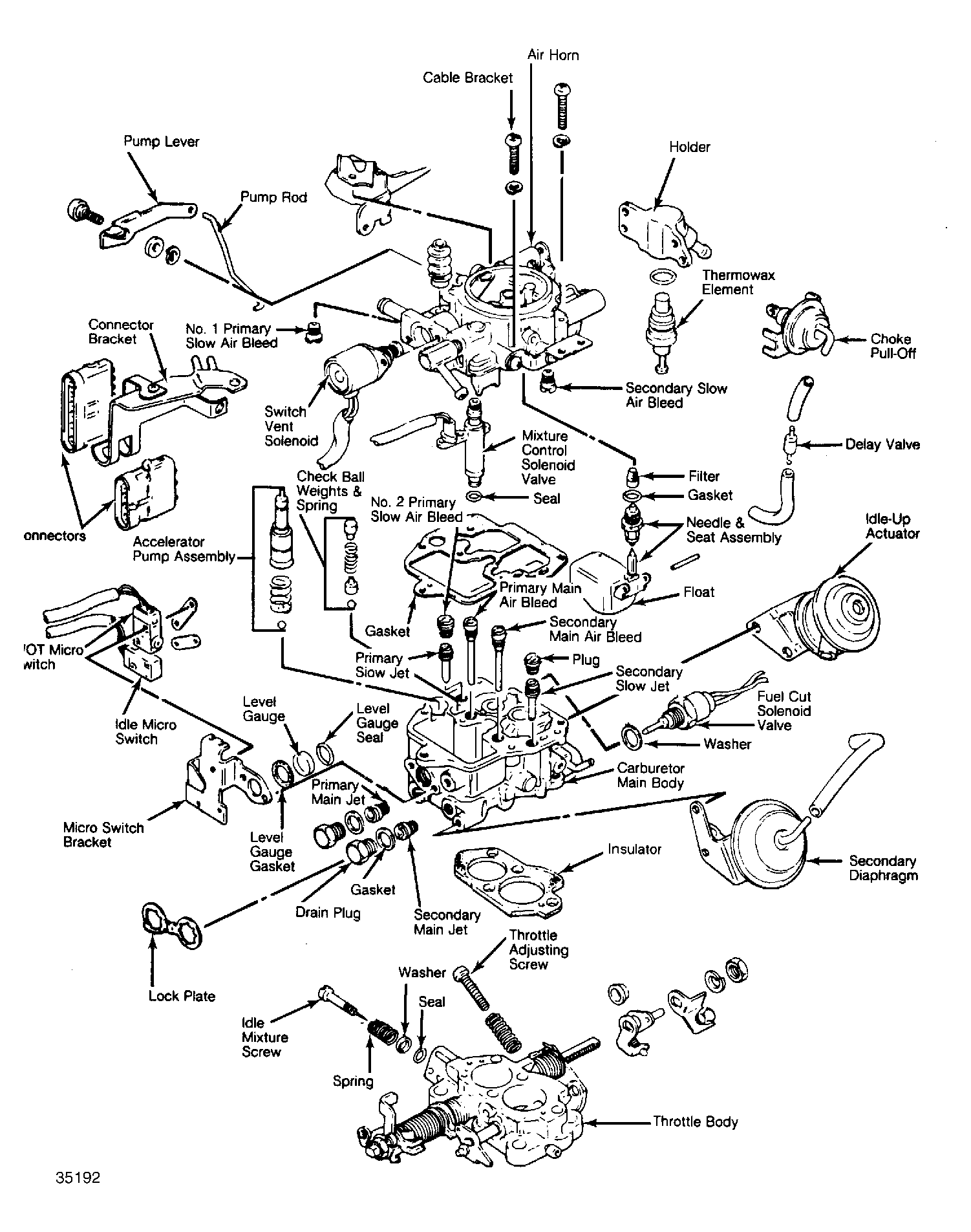

Fig 1: Exploded View of Hitachi DFB 306 Carburetor Assembly

Courtesy of SUZUKI OF AMERICA CORP.
