Modification Of Transfer Gear Shift Locating Parts (TS 3-13 01493)

MODIFICATION OF TRANSFER GEAR SHIFT LOCATING PARTS

TECHNICAL SERVICE BULLETIN

MODIFICATION OF TRANSFER GEAR SHIFT LOCATING PARTS

Model(s): 1986-93 Suzuki Samurai Vehicles

Section Title: Drivetrain

Bulletin No.: TS 3-13 01493

Date: January 4, 1993

CONDITION

Modification of transfer gear shift locating parts.

CAUSE

Factory Modification.

CORRECTION

When rebuilding the transfer case, use the updated parts as listed in this bulletin.

This bulletin is to inform you of the modification of the gear shift locating parts which has been carried out since August 1992 production. When replacing any of the indicated parts, use the updated parts as listed in this bulletin.

EFFECTIVE VIN NUMBERS

JS4JC31C_P4100255-

JS4JD31C_P4100091-

MODIFICATIONS

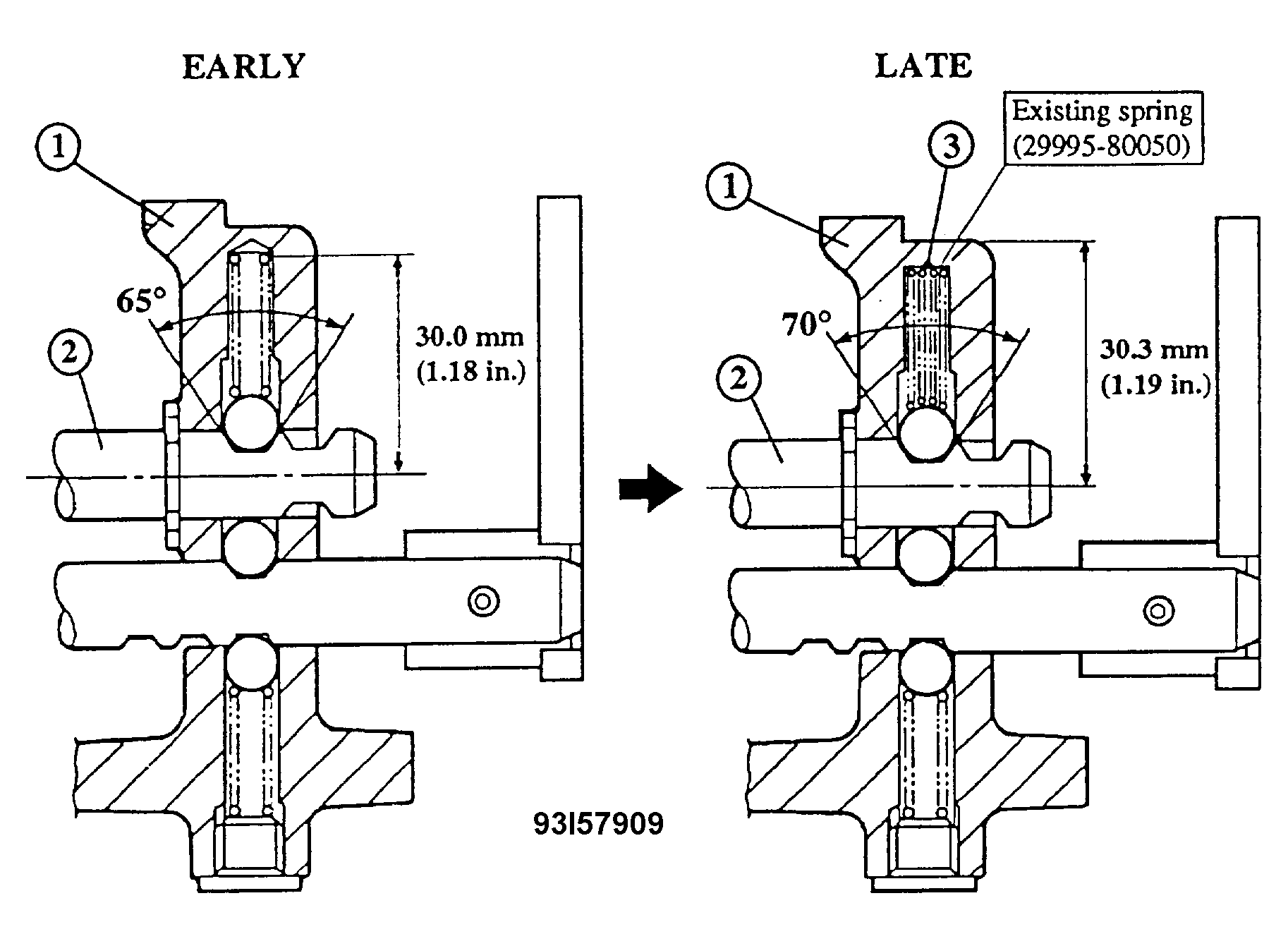

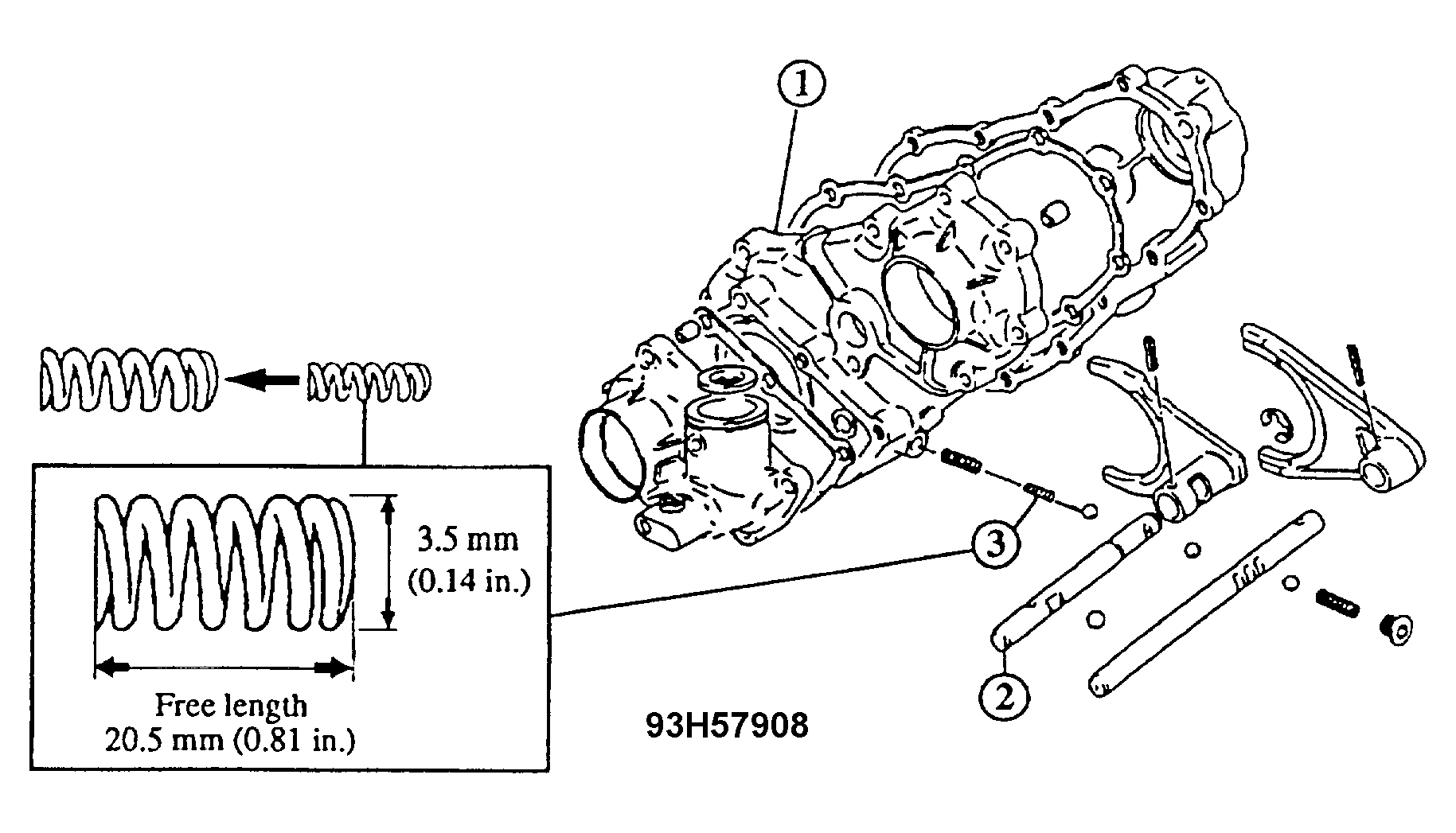

Refer to Fig 1 and Fig 2 .

1. Transfer case:
   • Depth of locating hole modified
2. Front drive shift shaft:
   • Locating ball groove reshaped
3. Gear shift locating inner spring:
   • New Addition to transfer case.
   • Fits inside existing spring.

PARTS INFORMATION

Ref #	Part Name	Early Part No.	Late Part No.	#	Supply of Spare parts	Interchange-ability (O:OK, X:NO)
1	Transfer case	29510-80053	29510-83050	1	Late only	Early -X->Late Early<-0- Late
2	Front driveshift shaft	29331-80051	29331-83050	1	Late only	Early -X->Late Early<-0-Late
3	Gear shift locating inner spring	---	29995-83050	1	Late only	Early<-0 -Late only if both1 & 2 above are used.
