MODIFICATION OF INTAKE MANIFOLD & THERMOSTAT

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 4-04 10272(R), Date of Issue:

MODIFICATION OF INTAKE MANIFOLD AND THERMOSTAT

Model(s): All Suzuki Models

Group: Engine

Bulletin No.: TS 4-04 10272(R)

Date: December, 1992

CONDITION

Change in intake manifold and thermostat.

CAUSE

Factory Modification.

CORRECTION

Use updated parts listed in this bulletin.

This bulletin is to inform you of the modification in the intake manifold and thermostat which has been carried out since June 1992 production. The thermostat mounting surface and port on the intake manifold have been enlarged in diameter to accommodate a new-style thermostat.with an O-ring. Since the late style thermostat is not interchangeable with the early-style manifold, use the late-style thermostat only with the late-style manifold.

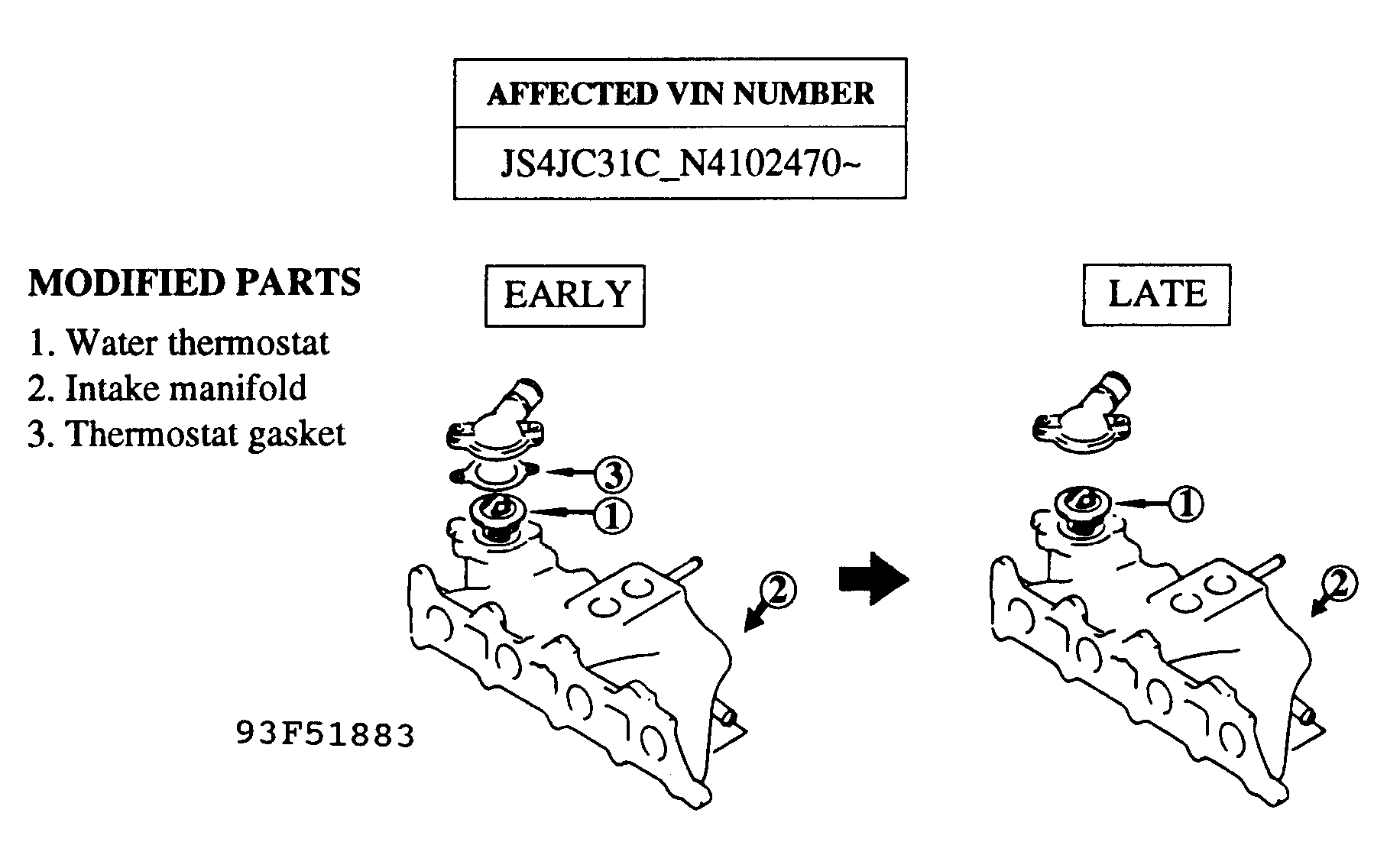

Fig 1: Modified Intake Manifold & Thermostat

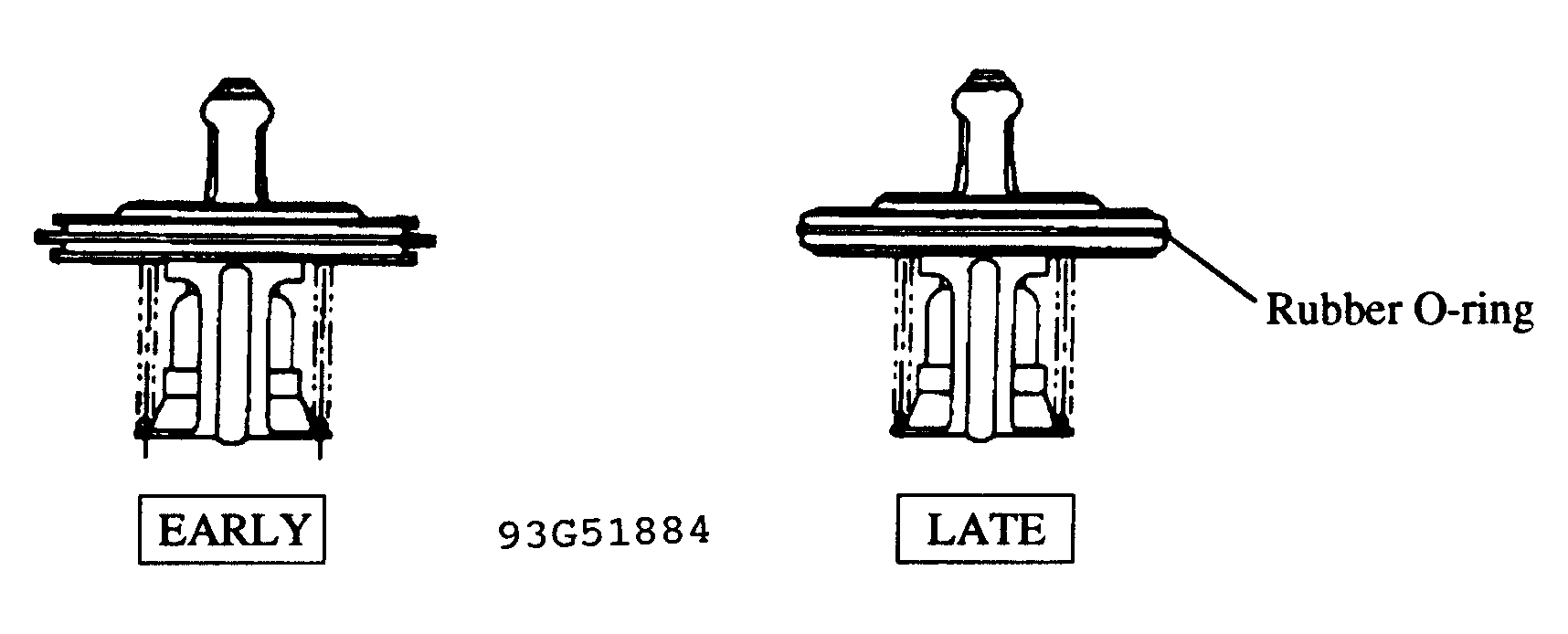

Fig 2: Water Thermostat Modification Detail

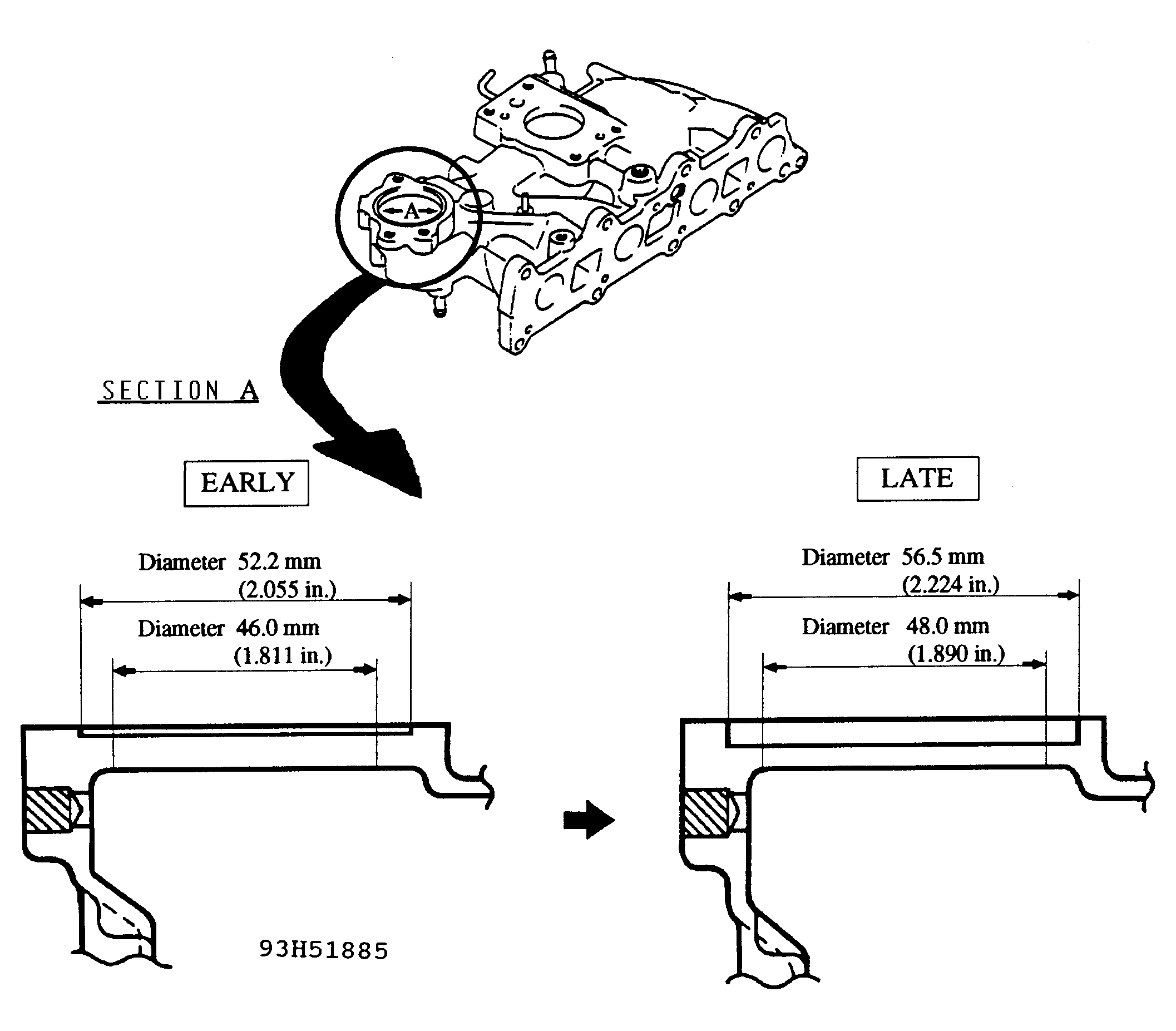

Fig 3: Intake Manifold Modification Detail

PARTS SUPPLY DATA

Ref #	Part Name	Early Part Number	Late Part Number	Supply of Spare Parts
1	Water thermostat (82C)	17600-85831	17670-56B00	Both early and late
Water thermostat (88C)		17600-85851-H17	17670-56B10
2	Intake manifold	13110-80C00	13110-80C01	Both early and late
3	Thermostat cap gasket	17569-60A10	-	Early only
NOTE: These parts are not interchangable
