Water Pump Leak (TS 06 03296)

Publication date: 2006-03-29
Reference number: TS 06 03296

WATER PUMP LEAK

TECHNICAL SERVICE BULLETIN

Reference Number(s): TS 06 03296, Date of Issue: March 29, 2006

SUZUKI:	All
SECTION:	Engine

Signs of coolant leakage at water pump weep hole.

During break in, some coolant will pass through the seal and leave green and white deposits around and below the weep hole.

If these deposits of coolant are found around the weep hole do not replace the water pump.

If these deposits of coolant are found and coolant is visibly leaking from the weep hole enough to drip on to the ground, replace the water pump.

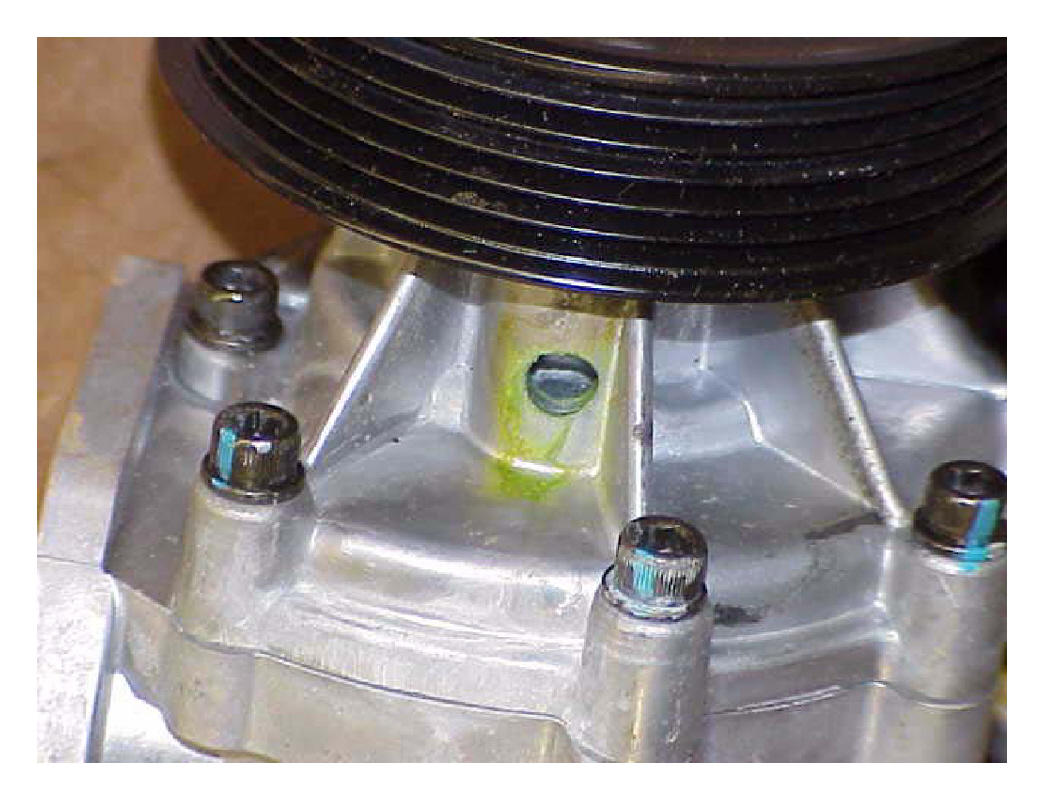

Fig 1: View Of Water Pump Weep Hole

Courtesy of SUZUKI OF AMERICA CORP.
