Liftgate Strut Ball Stud Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

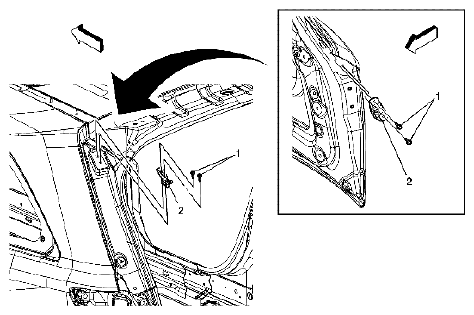

LIFTGATE STRUT BALL STUD COMPONENTS REFERENCE
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the liftgate strut. Refer to LIFTGATE STRUT REPLACEMENT . |
|
| 1 | Liftgate Strut Ball Stud Bolts (Qty: 2)
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 10 N.m (89 lb in) |
| 2 | Liftgate Strut Ball Stud |
