Liftgate Outside Handle Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

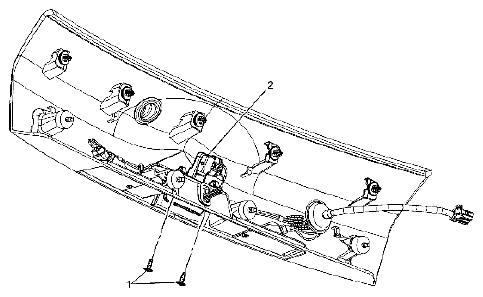

Fig 1: Identifying Liftgate Outside Handle & Screw

Courtesy of SUZUKI OF AMERICA CORP.

LIFTGATE OUTSIDE HANDLE COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the liftgate center applique. Refer to LIFTGATE CENTER APPLIQUE REPLACEMENT .
1	Liftgate Handle Screws (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 3 N.m (27 lb in)
2	Liftgate Handle Tip: Disconnect the electrical connector.
