Front Fender Upper Bracket Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

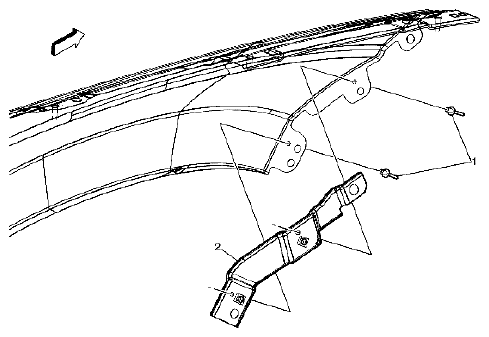

Fig 1: Identifying Front Fender Upper Bracket & Rivets

Courtesy of SUZUKI OF AMERICA CORP.

FRONT FENDER UPPER BRACKET COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the front fender. Refer to FRONT FENDER REPLACEMENT .
1	Front Fender Upper Bracket Rivets (Qty: 2)
2	Front Fender Upper Bracket
