Air Inlet Grille Panel Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

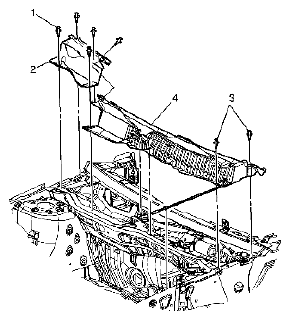

AIR INLET GRILLE PANEL COMPONENTS REFERENCE
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the wiper arm. Refer to WIPER ARM REPLACEMENT . |
|
| 1 | Air Inlet Grille Panel Retainer (Qty: 4) |
| 2 | Air Inlet Grille Panel |
| 3 | Air Inlet Grille Panel Retainer (Qty: 4) |
| 4 | Air Inlet Grille Panel Tip: Disconnect the front washer hose from the front washer nozzles in the air inlet grille panel. |
