Windshield Upper Garnish Molding Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

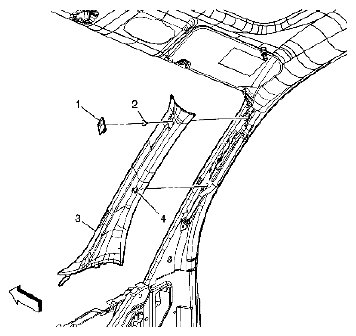

COMPONENTS REFERENCE
| Callout | Component Name |
|---|---|
| Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . |
|
| 1 | Windshield Side Garnish Molding Cover |
| 2 | Windshield Side Garnish Screw
CAUTION:
Refer to FASTENER NOTICE
in Cautions and Notices. Tightening torque 9 N.m (80 lb in) |
| 3 | Windshield Garnish Molding Assembly Procedure Starting at the top, gently pull on the garnish molding to disengage the clip. |
| 4 | Retainer clip (Qty: 1) |
