Liftgate Door Sill Plate Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

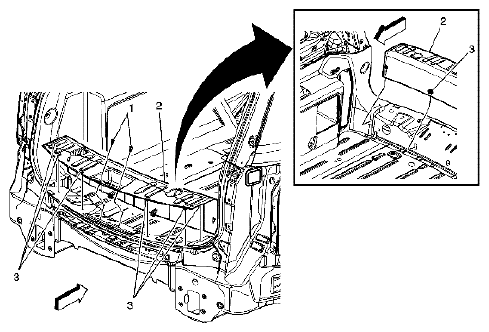

Fig 1: Identifying Liftgate Door Sill Plate Assembly & Retainer
G04844532Courtesy of SUZUKI OF AMERICA CORP.
COMPONENTS REFERENCE

Callout Component Name
Preliminary Procedures
  1. Remove rear floor storage bin. Refer to REAR STORAGE COMPARTMENT REPLACEMENT .
  2. Remove cargo hooks from liftgate door sill plate.
1 Liftgate Door Sill Plate Push Pin Fasteners (Qty: 2)
2 Liftgate Door Sill Plate Assembly
3 Liftgate Door Sill Plate Retainer (Qty: 6)
