Center Pillar Lower Garnish Molding Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

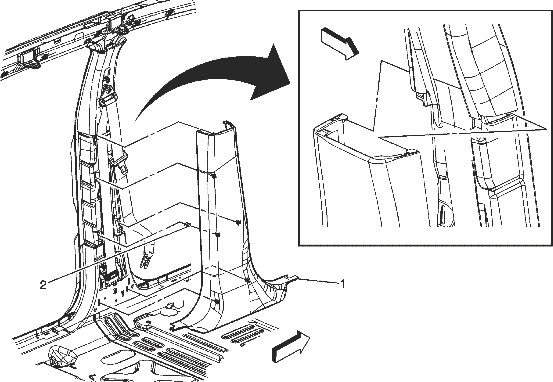

Fig 1: Identifying Center Pillar Lower Garnish Molding

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS REFERENCE

Callout	Component Name
Fastener Tightening Specifications: Refer to FASTENER TIGHTENING SPECIFICATIONS - INTERIOR TRIM AND PANELING . Preliminary Procedure Remove the rear carpet retainer. Refer to REAR CARPET RETAINER REPLACEMENT . Lift up the rear of the front carpet retainer. Refer to FRONT CARPET RETAINER REPLACEMENT .
1	Center Pillar Lower Trim Panel Tip: Start at the top of the lower garnish molding, pull at the clip locations to disengage the clips.
2	Center Pillar Lower Trim Panel Retainer Clip (Qty: 5)
