Rear Bumper Lower Fascia Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

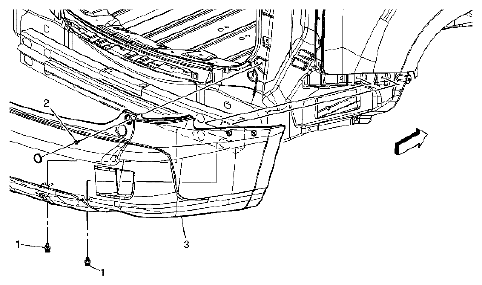

Fig 1: Identifying Rear Bumper Lower Fascia Components

Courtesy of SUZUKI OF AMERICA CORP.

REAR BUMPER LOWER FASCIA COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the plastic retainers and the bolts securing the rear wheelhouse liner panels to the fascia assembly. Refer to REAR WHEELHOUSE LINER PANEL REPLACEMENT .
1	Rear Bumper Lower Fascia Plastic Retainers (Qty: 4)
2	Rear Bumper Lower Fascia Bolts (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 6 N.m (53 lb in) Tip: Remove the plastic covers to access the bolts.
3	Rear Bumper Lower Fascia Tips Each side of the rear bumper upper fascia is secured to the quarter panel with two plastic retainers and an integral clip. For an image of these pieces refer to REAR BUMPER BRACKET REPLACEMENT . Do not jerk on the rear fascia to remove or you may break the retainers on the rear fascia brackets.
