Front Bumper Upper Fascia Grille Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

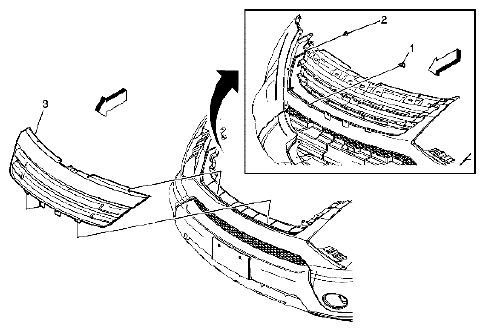

Fig 1: Identifying Front Bumper Upper Fascia Grille Components

Courtesy of SUZUKI OF AMERICA CORP.

FRONT BUMPER UPPER FASCIA GRILLE COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT .
1	Front Bumper Upper Grille Clips (Qty: 4)
2	Front Bumper Upper Grille Screws (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
3	Front Bumper Upper Grille Tip: Transfer the grille emblem.
