Front Bumper Lower Fascia Grille Replacement

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

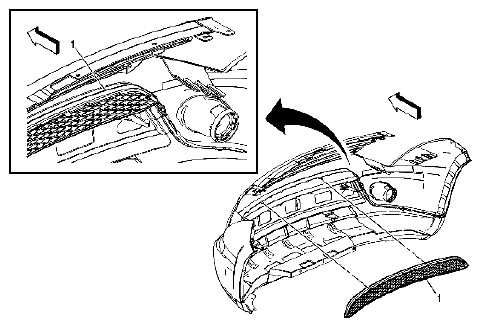

Fig 1: Identifying Front Bumper Lower Fascia Grille Components

Courtesy of SUZUKI OF AMERICA CORP.

FRONT BUMPER LOWER FASCIA GRILLE COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the front energy absorber. Refer to FRONT BUMPER FASCIA ENERGY ABSORBER REPLACEMENT .
1	Front Bumper Lower Grille NOTE: Do not use excessive force to release the lower grille. If the lower grille cannot be secured then parts of the fascia may have to be replaced.
