Luggage Carrier Replacement (With Sunroof)
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

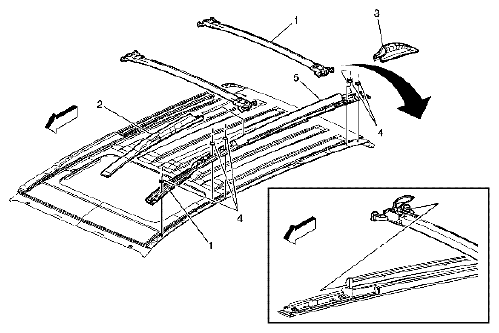

LUGGAGE CARRIER REFERENCE TABLE
| Callout | Component Name |
|---|---|
| 1 | Front Luggage Rack Rail |
| 2 | Front Luggage Rack Cover |
| 3 | Rear Luggage Rack Cover |
| 4 | Front Luggage Rack Nuts (Qty:5)
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 10 N.m (89 lb in) |
| 5 | Front Luggage Rack Rail |
