Seat Belt Retractor Anchor Plate Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

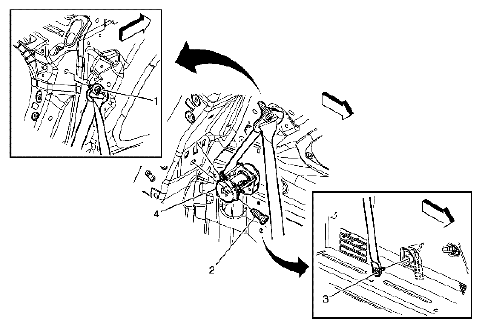

CALLOUT COMPONENT NAME
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front seat cushion outer trim panel. Refer to FRONT SEAT CUSHION OUTER TRIM PANEL REPLACEMENT (NON FOLD FLAT) and FRONT SEAT CUSHION OUTER TRIM PANEL REPLACEMENT (FOLD FLAT) . |
|
| 1 | Seat Belt Retractor Anchor Plate Bolt (Qty: 1)
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 50 N.m (37 lb ft) |
| 2 | Seat Belt Retractor Anchor Plate |
