Camshaft Timing Drive Chain Alignment Diagram (Fourth Design)

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

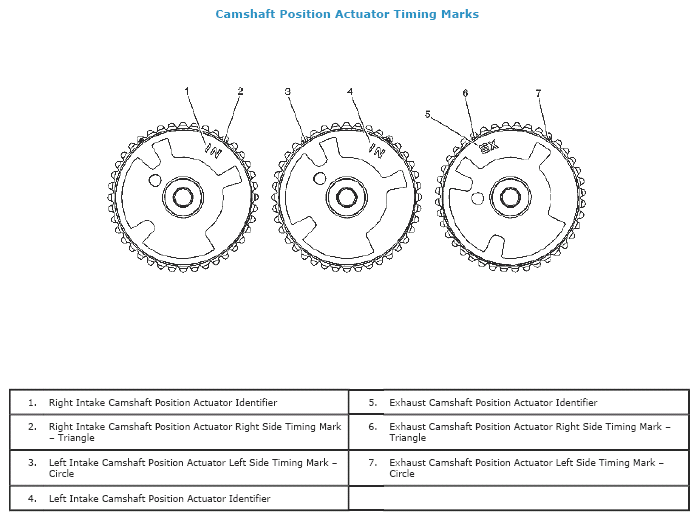

Fig 1: Identifying Camshaft Position Actuator Timing Marks

Courtesy of SUZUKI OF AMERICA CORP.

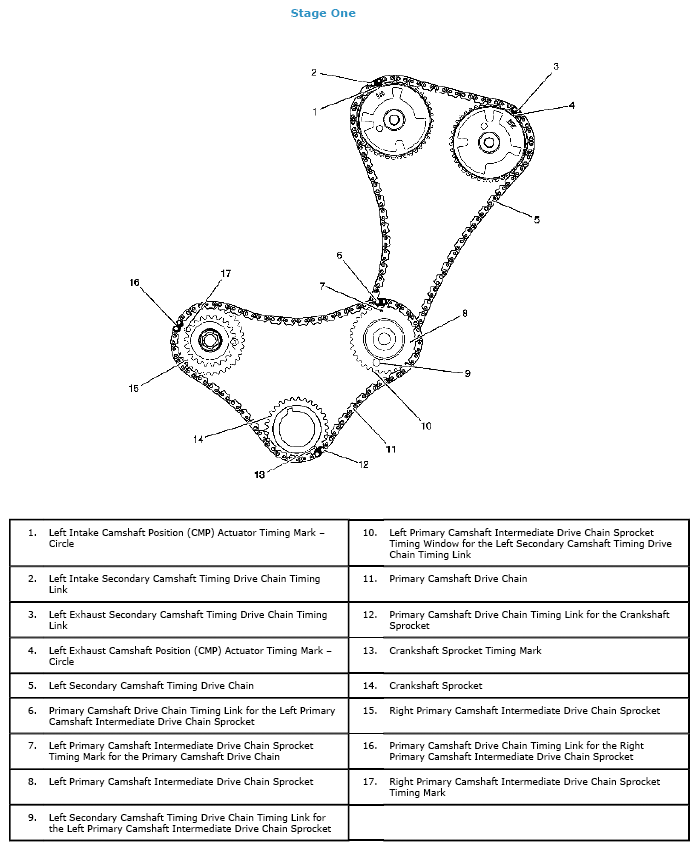

Fig 2: Identifying Camshaft & Drive Chain Timing Marks (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

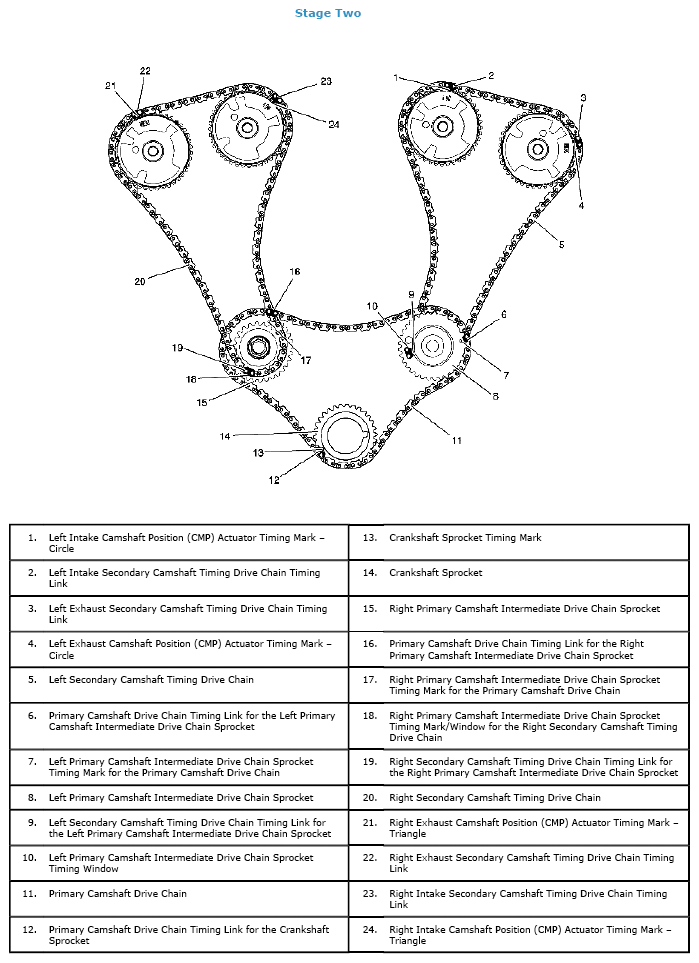

Fig 3: Identifying Camshaft & Drive Chain Timing Marks (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.
