HVAC Schematics

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

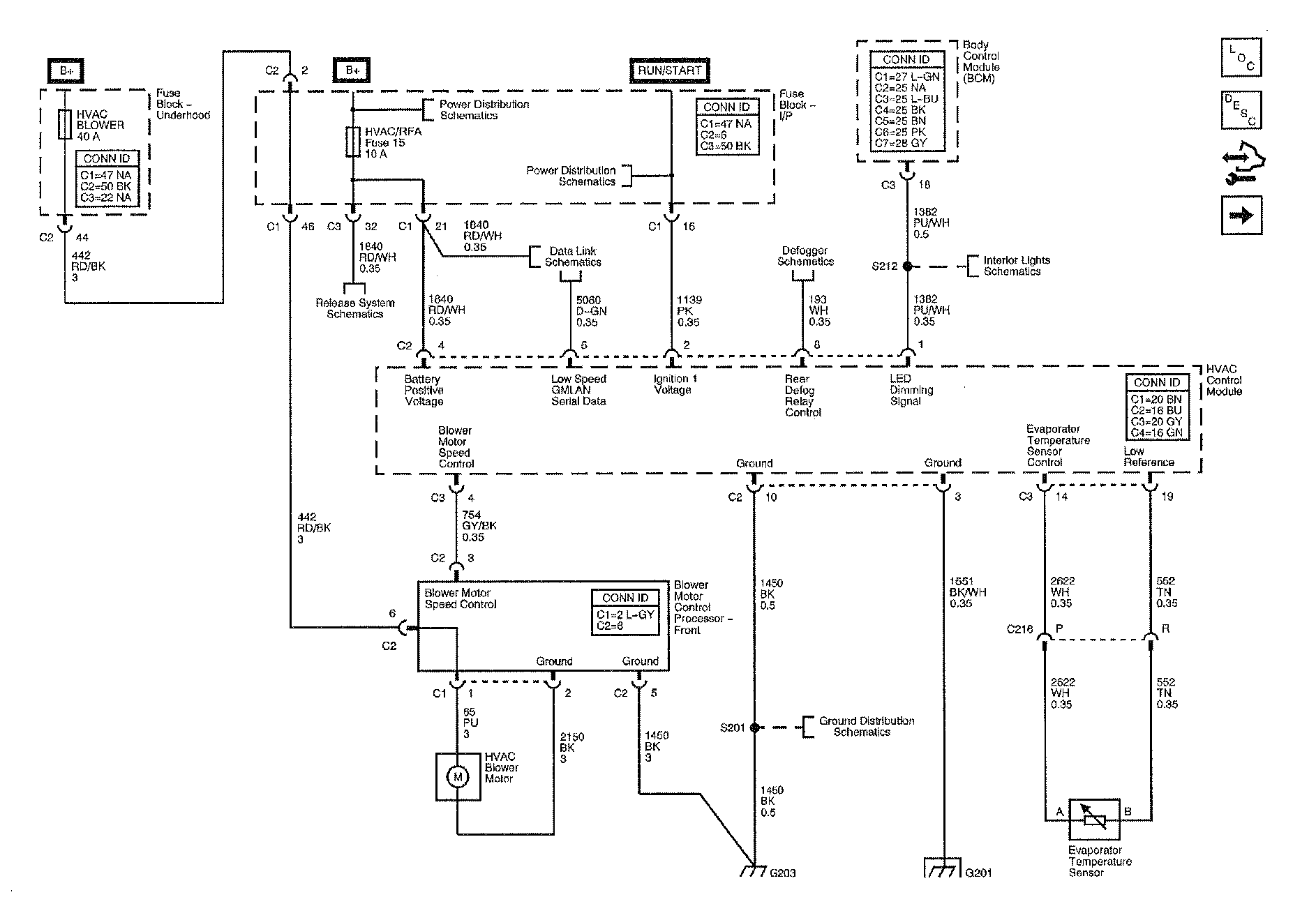

Fig 1: Identifying HVAC Schematics - Module Power, Ground, Serial Data & Front Blower Controls

Courtesy of SUZUKI OF AMERICA CORP.

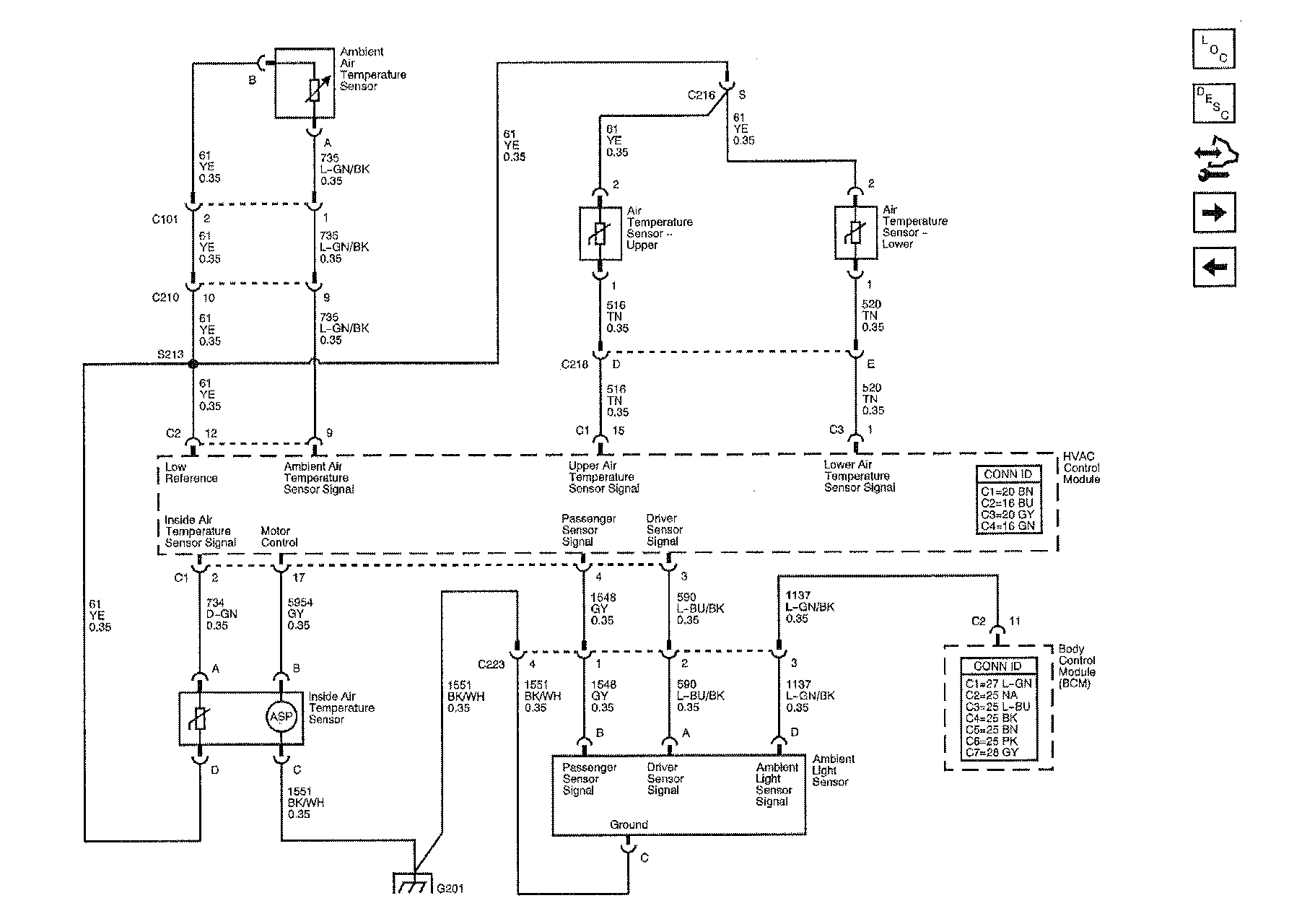

Fig 2: Identifying HVAC Schematics - Air Temperature Sensors & Ambient Light Sensor

Courtesy of SUZUKI OF AMERICA CORP.

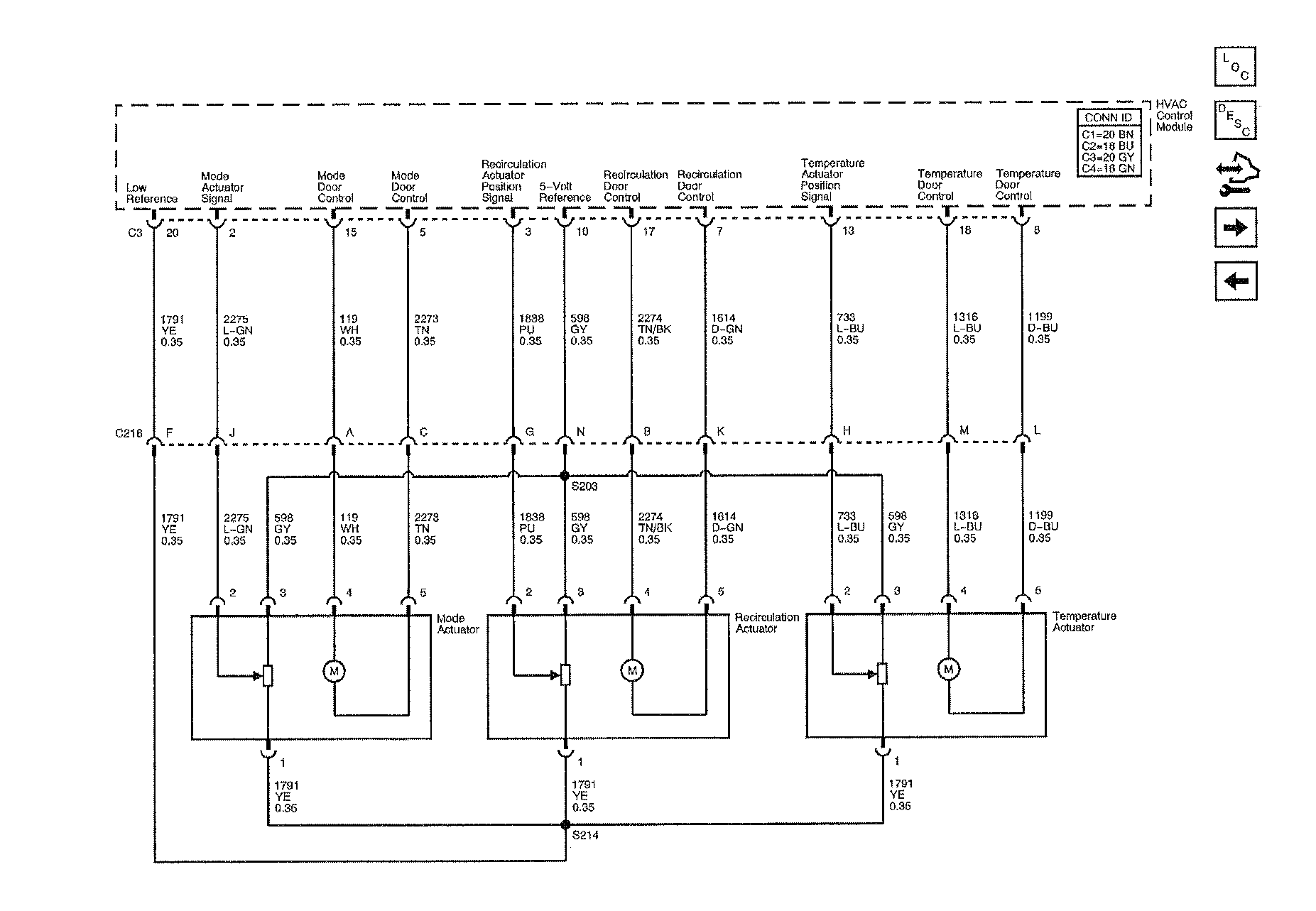

Fig 3: Identifying HVAC Schematics - Mode, Recirculation & Temperature Actuators

Courtesy of SUZUKI OF AMERICA CORP.

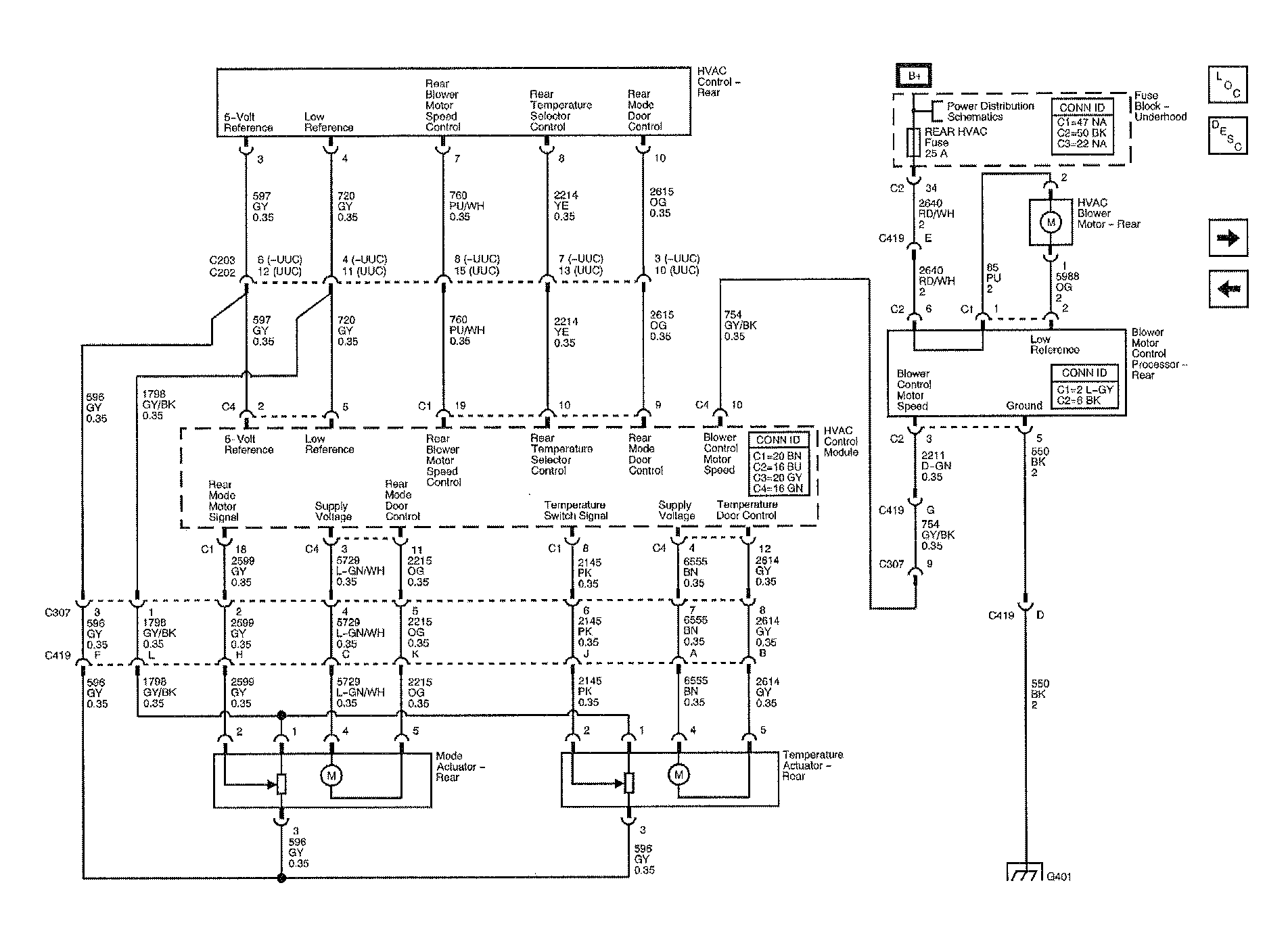

Fig 4: Identifying HVAC Schematics - Rear HVAC Controls & Actuators

Courtesy of SUZUKI OF AMERICA CORP.

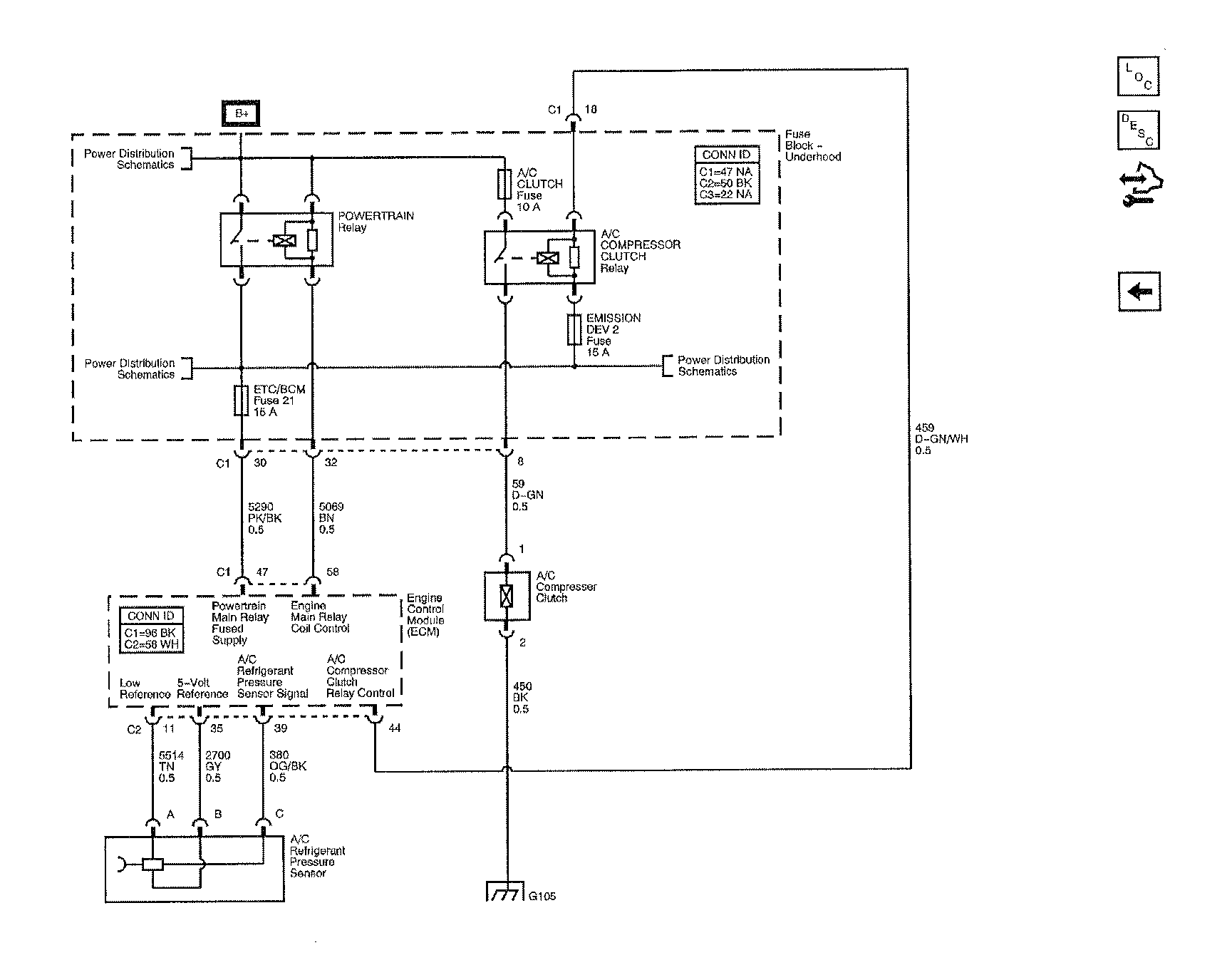

Fig 5: Identifying HVAC Schematics - A/C Compressor Controls

Courtesy of SUZUKI OF AMERICA CORP.
