Heater Inlet Hose Replacement (w/ C69)

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

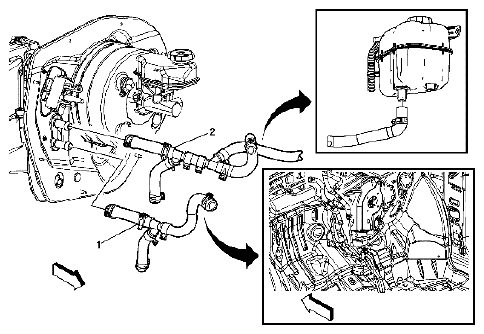

Fig 1: Identifying Heater Inlet Hose & Clamp

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT COMPONENT NAME TABLE

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to DRAINING AND FILLING COOLING SYSTEM (LY7 GE 47716 FILL) and DRAINING AND FILLING COOLING SYSTEM (LY7 STATIC FILL) . Remove the heater inlet hose clamp from the heater core. Remove the heater inlet hose clamp from the engine. Remove the heater inlet hose clamp from the auxiliary heater pipe.
1	Inlet heater hose. Tip: The replacement hose is shipped as an assembly including hose connections, clamps and assembly lubricant to be applied upon installation.
