Auxiliary Heater and Air Conditioning Control Replacement
WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

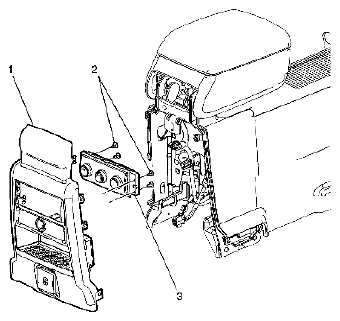

CALLOUT COMPONENT NAME TABLE
| Callout | Component Name |
|---|---|
| 1 | Rear Console Trim Plate Refer to CONSOLE REAR TRIM PLATE REPLACEMENT . |
| 2 | Auxiliary HVAC Control Module Screw (Qty: 4)
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 1.5 N.m (13 lb in) |
| 3 | Auxiliary HVAC Control Module Tip: Disconnect the electrical connectors. |
