Air Temperature Sensor Replacement - Upper

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

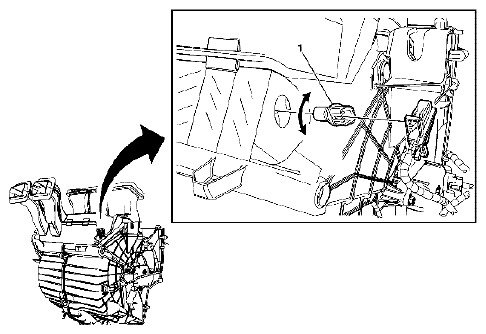

Fig 1: Identifying Air Temperature Sensor - Upper

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT COMPONENT NAME TABLE

Callout	Component Name
Preliminary Procedure Remove I/P Compartment. Refer to INSTRUMENT PANEL COMPARTMENT REPLACEMENT . Disconnect electrical connections. Tip: Reposition upper duct to gain access to air temperature sensor.
1	Air Temperature Sensor - Upper Tip: Rotate sensor 1/4 turn to remove
