Air Temperature Door Replacement - Auxiliary

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

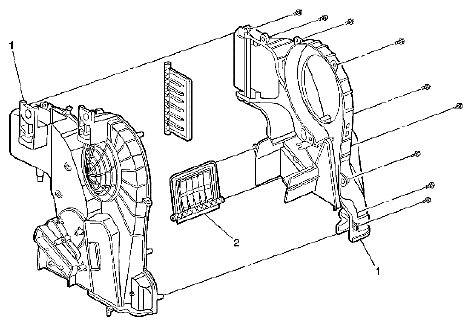

Fig 1: Identifying Auxiliary HVAC Side Case Screws & Auxiliary Temperature Door

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT COMPONENT NAME TABLE

Callout	Component Name
Preliminary Procedure Remove the auxiliary HVAC module. Refer to AUXILIARY HVAC MODULE REPLACEMENT Disconnect electrical connections. Remove lower HVAC case screws. Refer to 07 193 Aux. EVAP Replacement Tip: The HVAC lower and side cases must be separated for temperature door removal.
1	Auxiliary HVAC Side Case Screws CAUTION: Refer to FASTENER NOTICE . Tightening torque 1.5 N.m (13 lb in)
2	Auxiliary Temperature Door Ensure evaporator gasket is in good condition upon installation. Ensure temperature and mix doors are in proper position upon assembly of side cases.
