HVAC Component Views

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

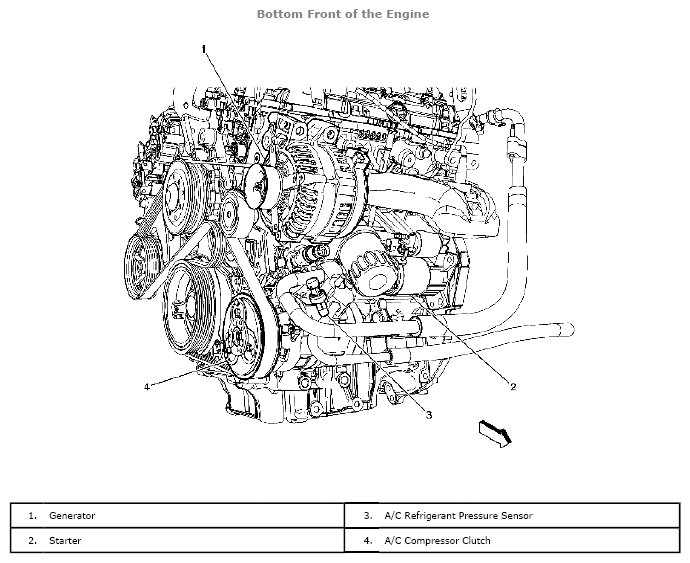

Fig 1: Identifying A/C Refrigerant Pressure Sensor & A/C Compressor Clutch - Bottom Front Of Engine

Courtesy of SUZUKI OF AMERICA CORP.

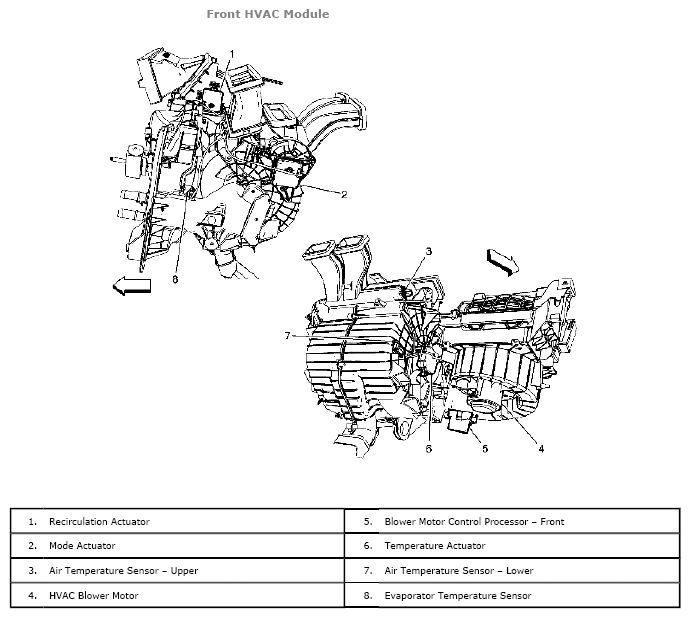

Fig 2: Identifying Front HVAC Module Components

Courtesy of SUZUKI OF AMERICA CORP.

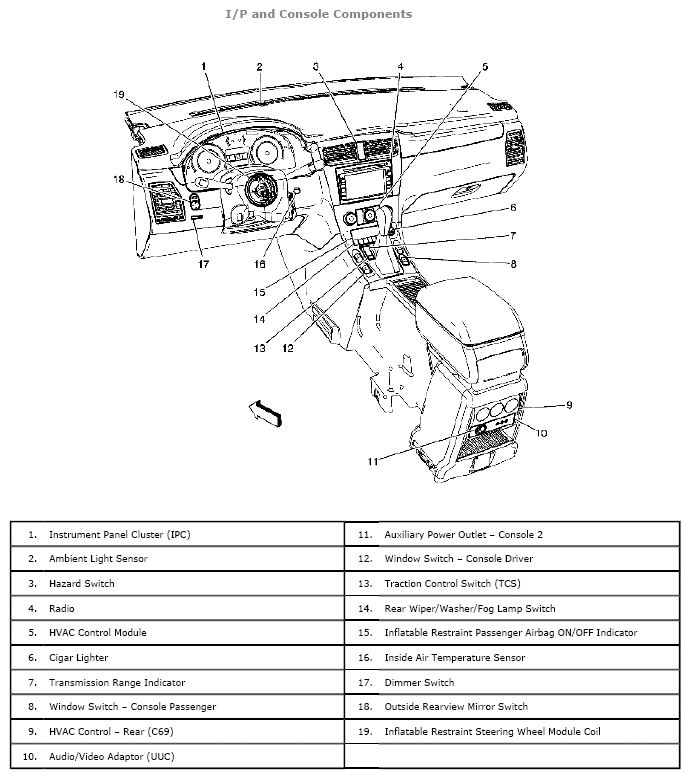

Fig 3: Identifying I/P & Console Components

Courtesy of SUZUKI OF AMERICA CORP.

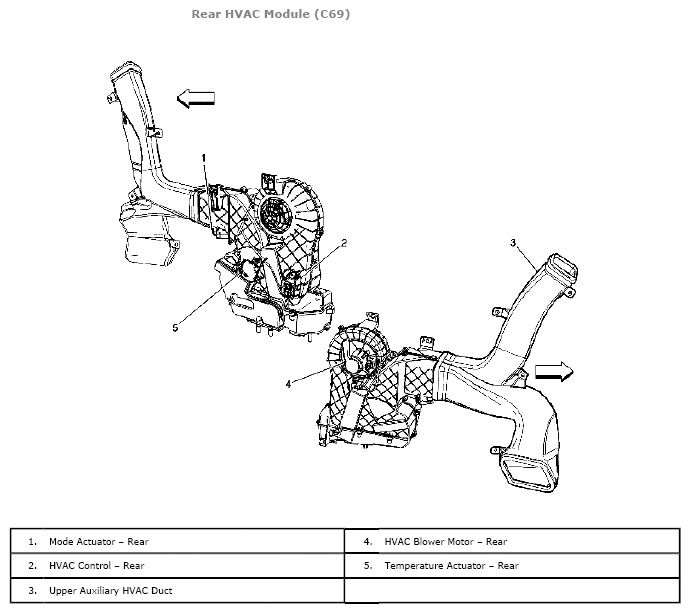

Fig 4: Identifying Rear HVAC Module Components (C69)

Courtesy of SUZUKI OF AMERICA CORP.
