Mobile Telephone Microphone Replacement (Without CF5)

WARNING: This page is about a different car, the 2007 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

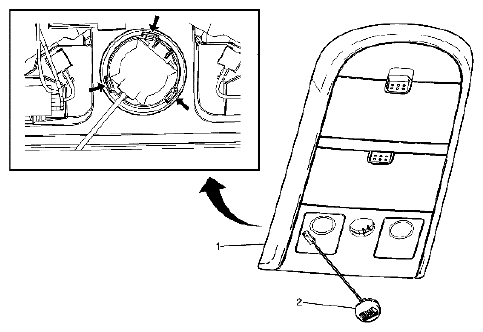

Fig 1: Identifying Front Overhead Console Assembly & Mobile Telephone Microphone Assembly (Without CF5)
G04843261Courtesy of SUZUKI OF AMERICA CORP.
MOBILE TELEPHONE MICROPHONE REPLACEMENT REFERENCE

Callout Component Name
1 Front Overhead Console Assembly
Refer to ROOF CONSOLE REPLACEMENT .
2 Mobile Telephone Microphone Assembly
  1. Disconnect the microphone electrical connector.
  2. From the top side of the overhead console remove the microphone by releasing the 3 clips and pushing the microphone through the bottom of the console.
