Vacuum Hose Diagram(S)

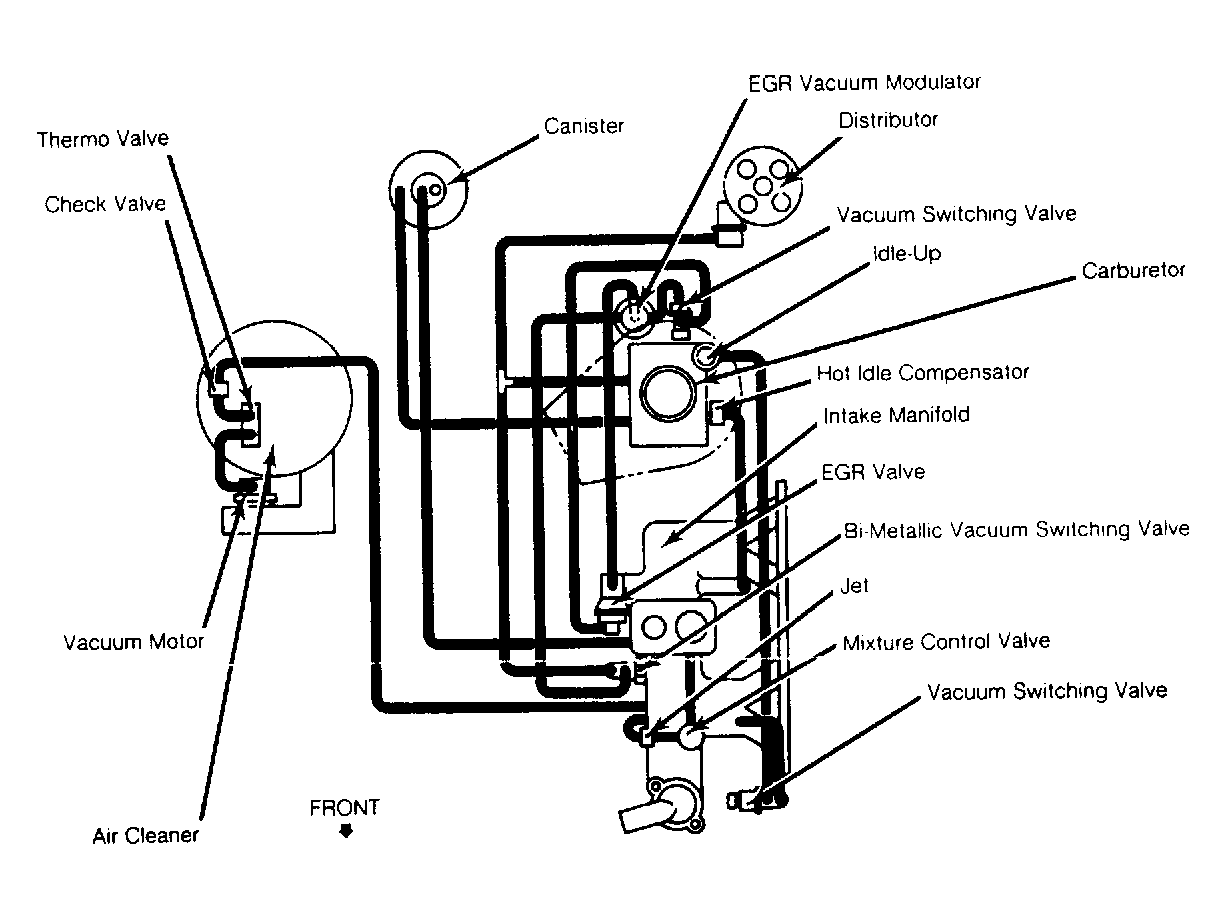

Fig 1: Vacuum Diagram
Courtesy of SUZUKI OF NORTH AMERICA CORP.
Courtesy of SUZUKI OF NORTH AMERICA CORP.
