Front Caliper: Reassembly

Lubricate new piston seal with brake fluid. Insert seal into piston cylinder seal groove. Carefully insert piston into cylinder using finger pressure. Apply brake fluid to piston and install new dust cover. Install bleeder screw.

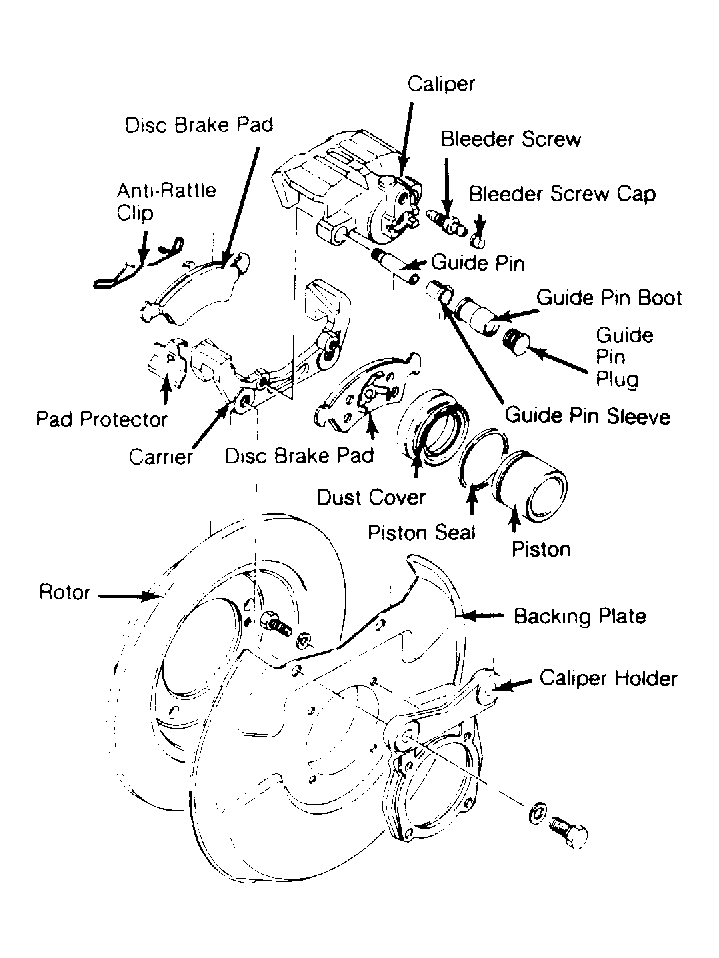

Fig 1: Exploded View of Front Brake Caliper
G58170Courtesy of SUZUKI OF AMERICA CORP.
