IV. Reinstallation of Rear Window Assembly
Step-1. Make sure the extrusion seal is seated on thetailgate.
Step-2. Install window assembly onto extrusion seal.

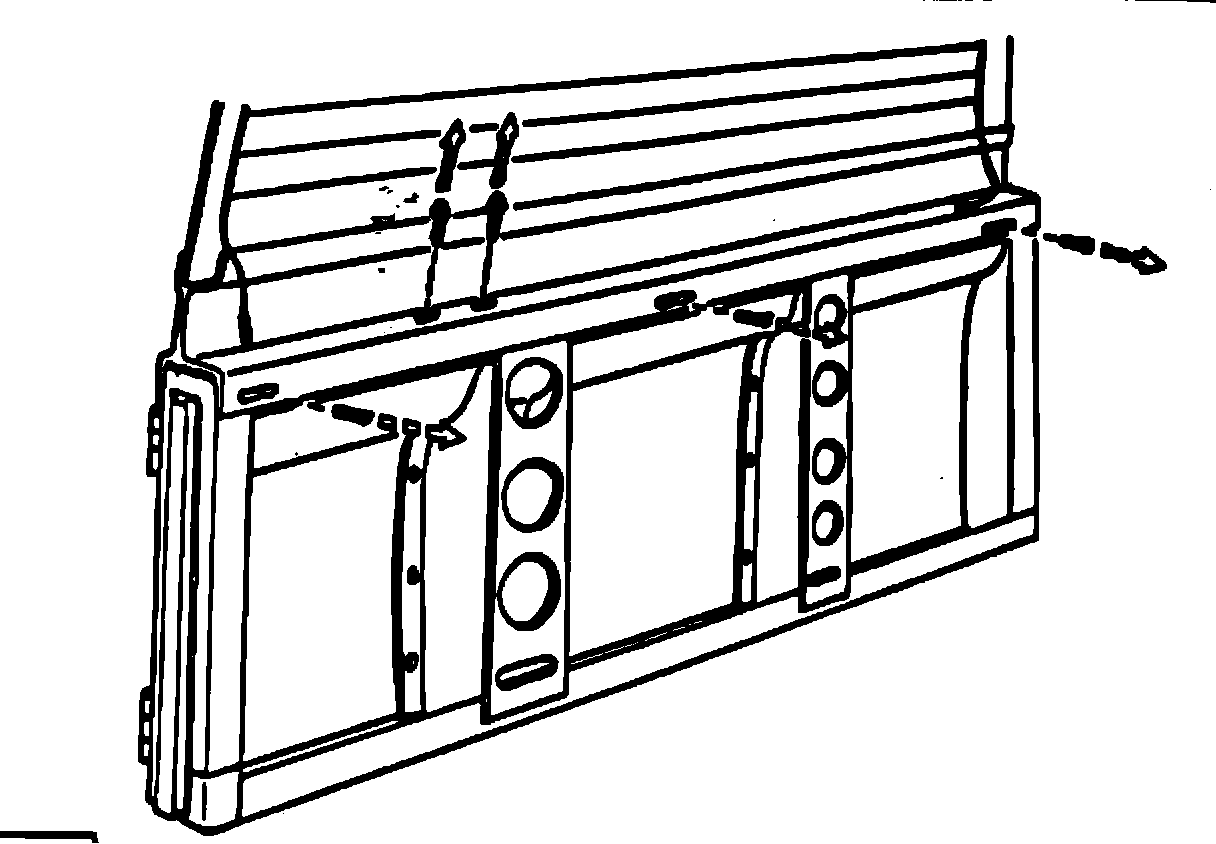

FIGURE 1:
Step-3. Loosely install the two 8 mm flange bead bolts
into top of tailgate. Refer to Fig. 1. Center assembly on tailgate. Completely tighten 8 mm bolts. Be certain window assembly is aligned evenly at both sides of top.
Step-4. While applying pressure by band in a forward
direction, install the three machine screws into jacknuts. Refer to Fig. 1. Use snap caps provided to cover beads of machine screws.
NOTE: To adjust window assembly, loosen top two bolts.
Step-5. Install the provided negative wire to the rear
window glass and extrusion.
Step-6. Attach the provided positive wire to the rear
glass assembly. Route the wire clip to the body clip.
Step-7. Check the defogger wiring to assure it is receiving
power at the rear glass and has been installed properly.
Step-8. Check to make sure the rear glass is aligned properly
along the rear top seal.
