Rear Axle Bearing - Modification

TSB No. TS 3-04 07319(R)
Section Title: Drivetrain

Division: Automotive
Category: Technical

SUBJECT:
MODIFICATION OF REAR AXLE BEARING

MODEL: SAMURAI

YEAR: ALL
BEGINNING VIN:
JS3(4)JC51C-J4258204
JS3(4)JC51V-J4154915

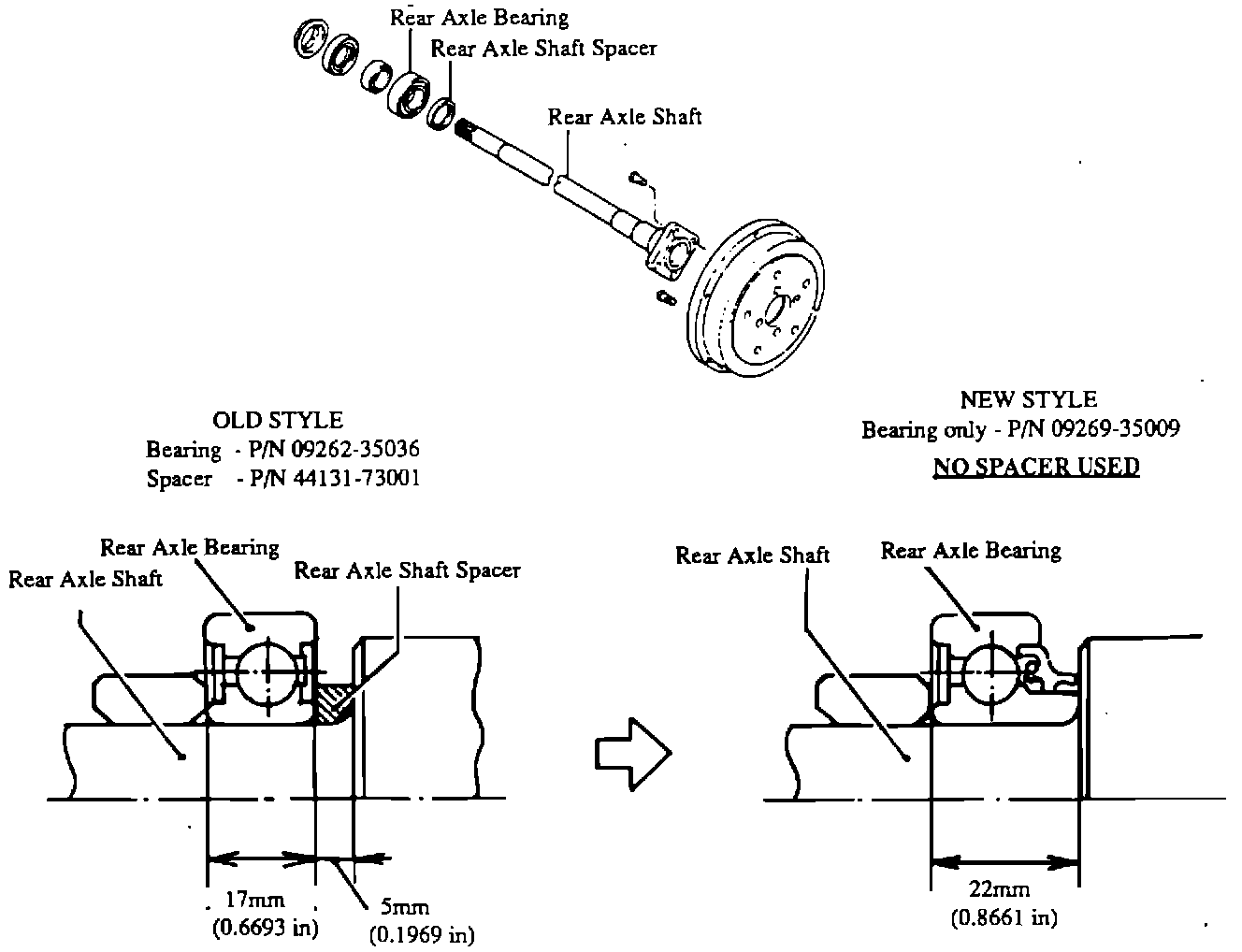

This bulletin is to inform you of the modification to the axle bearing and rear axle shaft spacer.
