Brake Pad: Service and Repair

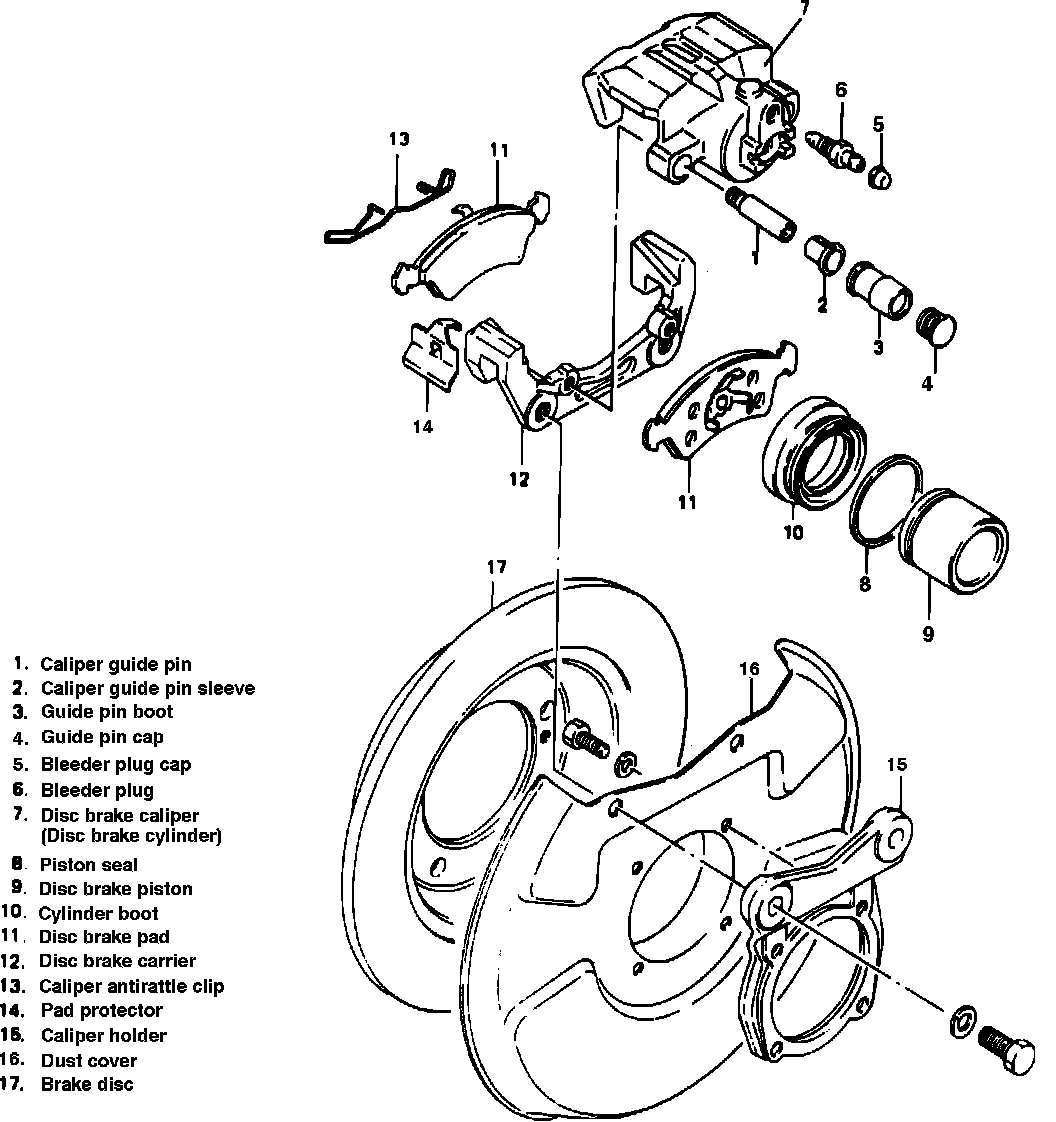

Fig. 4 Exploded view of brake assembly:

1. Raise and support vehicle, then remove wheel assembly.
2. Remove caliper antirattle clip, Fig. 4.
3. Remove caliper guide pin caps.
4. Using a 6 mm Allen wrench, remove caliper guide pins.
5. Remove pad protectors, then caliper cylinder.
6. Remove pads.
7. Reverse procedure to install noting the following:
a. Torque caliper bolts to 18.5-21.5 ft. lbs.
b. Install wheel assemblies.
c. Lower vehicle and perform brake test.
