Wiring Diagrams: Wiring Diagram

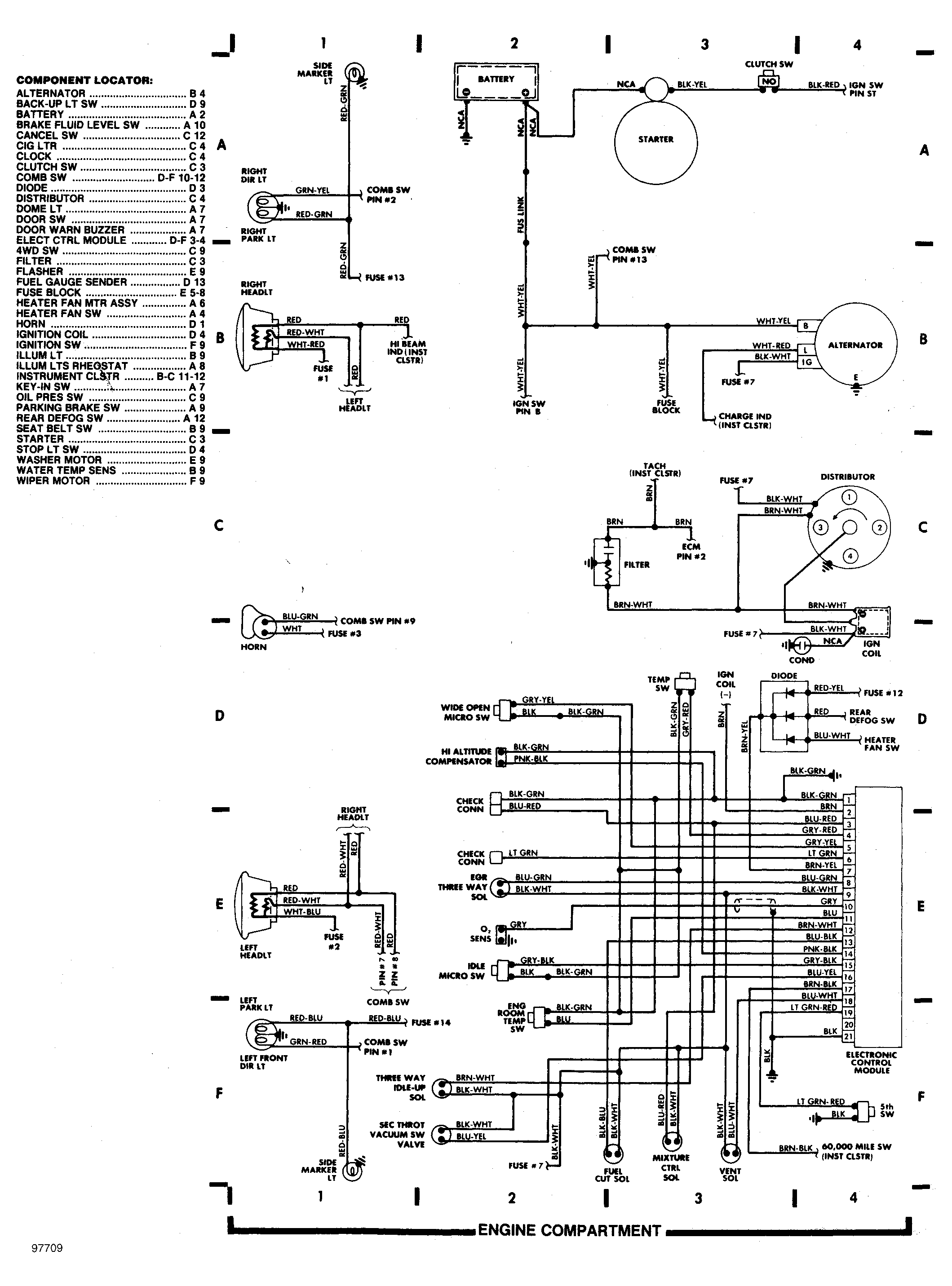

Fig 1: Engine Compartment (Grids 1-4)
G97709

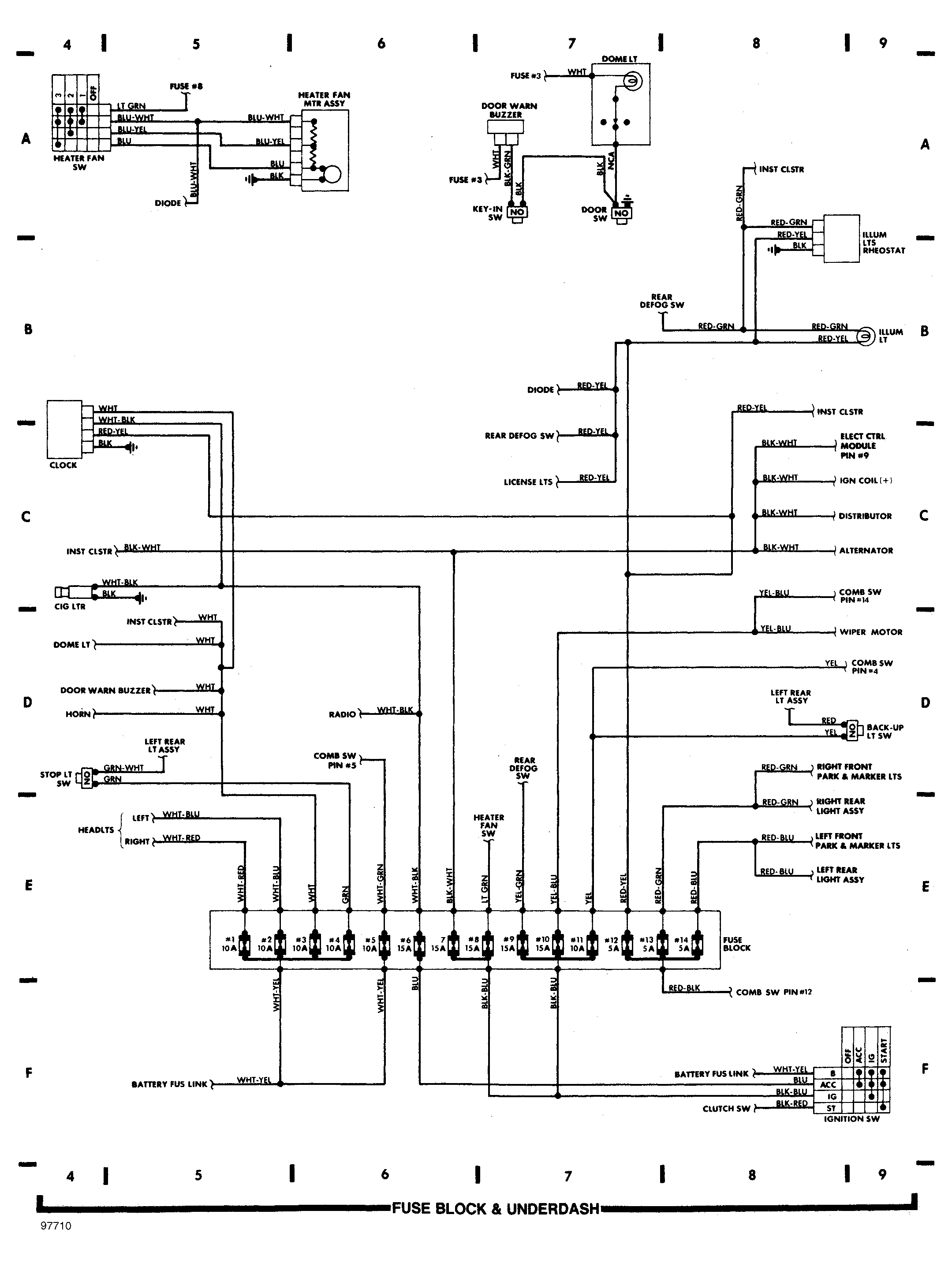

Fig 2: Fuse Block & Underdash (Grids 4-9)
G97710

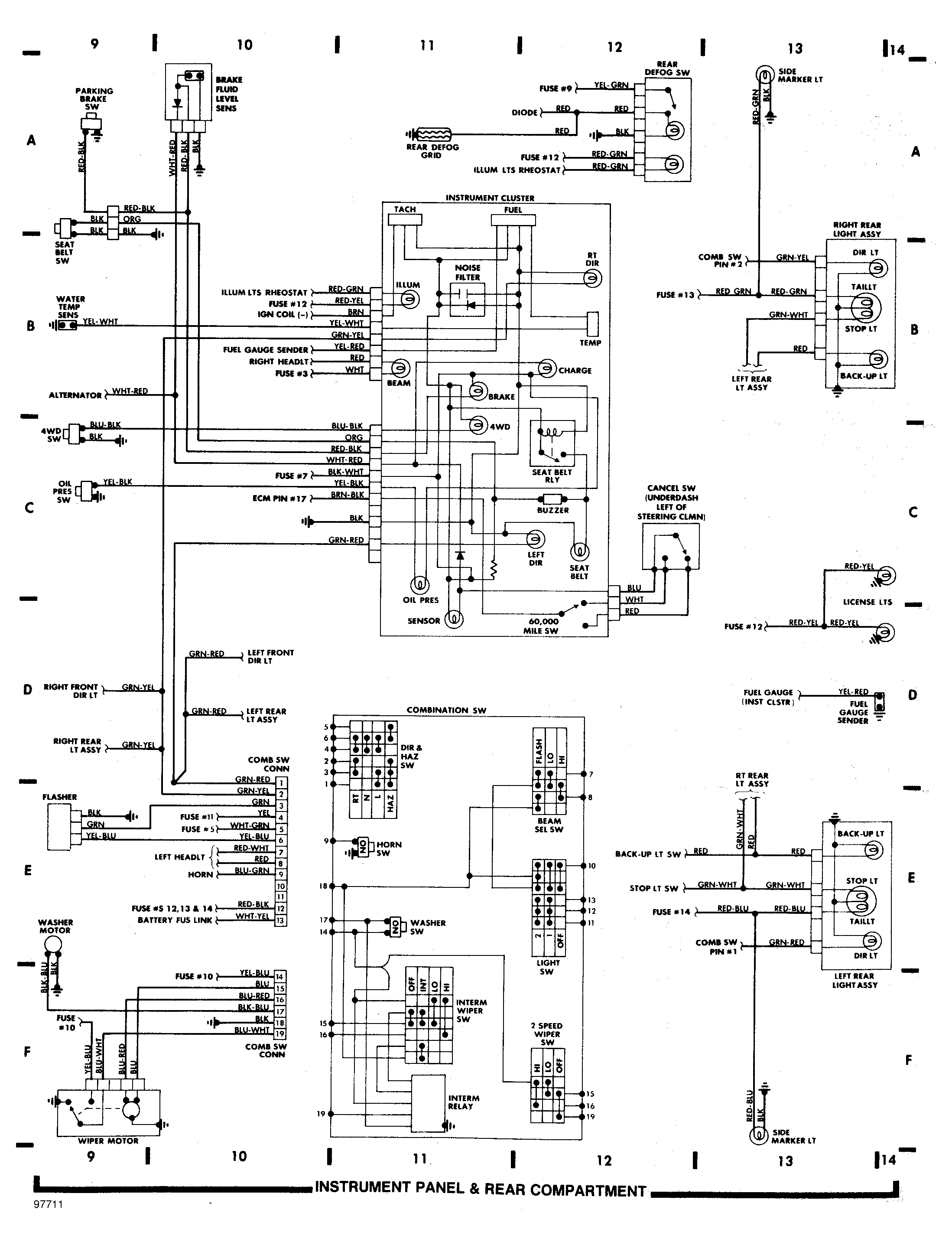

Fig 3: Instrument Panel & Rear Compartment (Grids 9-14)
G97711
