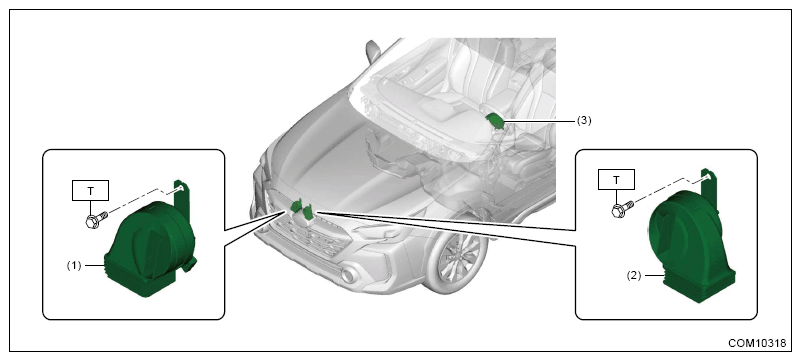

Components With Torque Specifications
 Courtesy of SUBARU OF AMERICA, INC.
|
| (1) |
Horn ASSY Hi |
| (2) |
Horn ASSY Lo |
| (3) |
Horn switch (driver's airbag module) |
Tightening torque: N.M (kgf-m, ft-lb)
T: 18 (1.8, 13.3)
