Front Fog Light Assembly: Removal

WARNING: This page is about a different car, the 2023 Subaru Ascent. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Turn over the mud guard front.

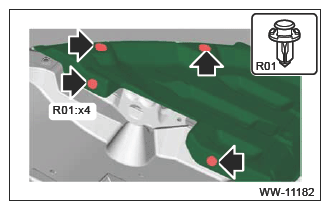

    1. Remove the clips, and turn over the mud guard front.
    G16441299Courtesy of SUBARU OF AMERICA, INC.

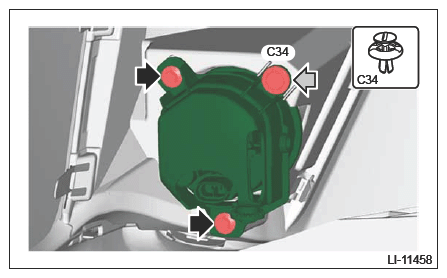

  4. Remove the bolts and clips, and remove the fog light assembly front.
G16441300Courtesy of SUBARU OF AMERICA, INC.
