Electronically-Controlled Damper Model

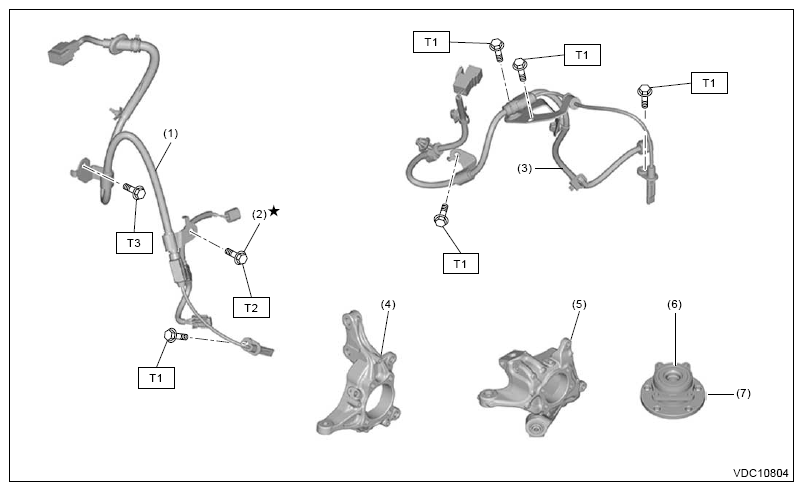

Fig 1: ABS Wheel Speed Sensor Components Location (Electronically-Controlled Damper Model)

Courtesy of SUBARU OF AMERICA, INC.

(1)	Electric damper harness ABS ASSY front
(2)	Flange bolt
(3)	Electric damper harness ABS ASSY rear
(4)	Front axle housing
(5)	Rear axle housing
(6)	Magnetic encoder
(7)	Hub unit bearing

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 15 (1.5, 11.1)

T3: 33 (3.4, 24.3)
