Security System

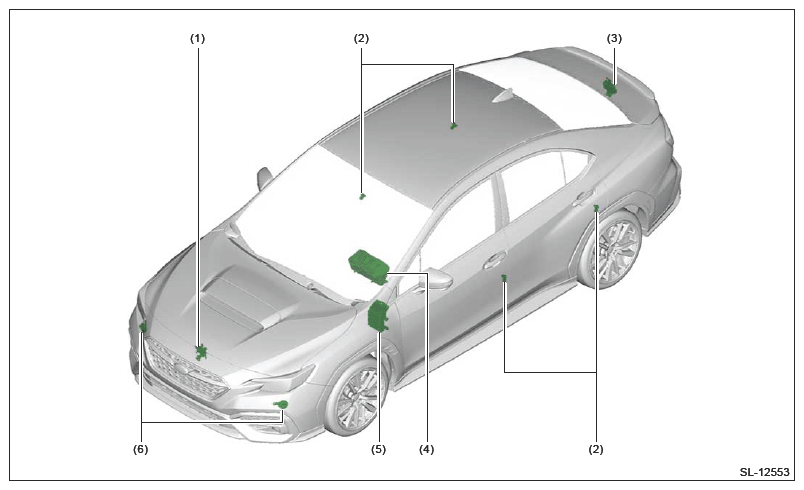

G16541090Courtesy of SUBARU OF AMERICA, INC.
(1) Hood switch
(2) Door switch
(3) Trunk lid latch switch
(4) Security indicator light (in combination meter)
(5) Body integrated unit
(6) Horn
NOTE: For the location of hazard lights, refer to "General Description" in "LIGHTING SYSTEM" article.
Ref. to LIGHTING SYSTEM>GENERAL DESCRIPTION>SPECIFICATION .
