General Description
>>
Components With Torque Specifications
>>
Front Hood Lock
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Front Hood Lock

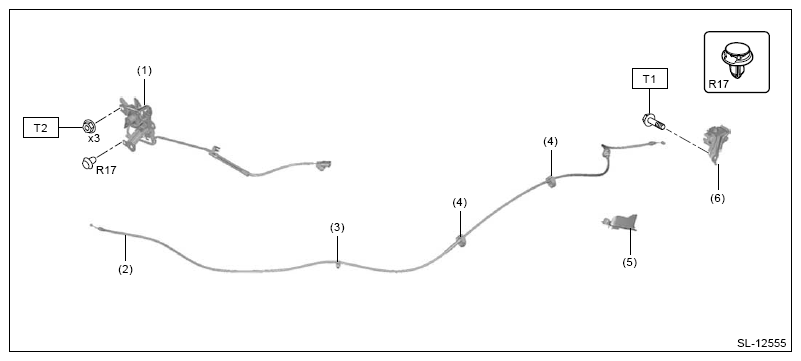

Fig 1: Front Hood Lock Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Lock ASSY front hood
(2)
Cable ASSY front hood
(3)
Clip
(4)
Clip
(5)
Protector cable
(6)
Opener handle
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 33 (3.4, 24.3)
Courtesy of SUBARU OF AMERICA, INC.
