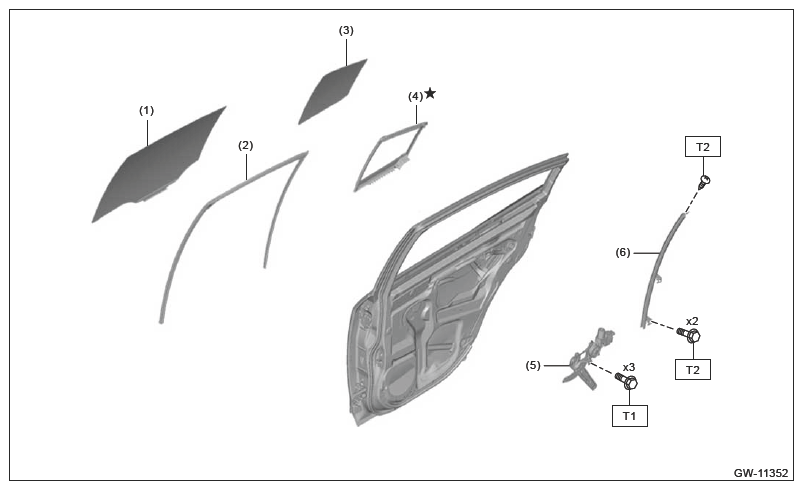

Sedan Model
| (1) | Glass ASSY rear door |
| (2) | Running channel rear door |
| (3) | Glass rear door partition |
| (4) | Weather strip rear door partition |
| (5) | Regulator & motor ASSY rear |
| (6) | Sash ASSY rear door partition |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: Ref. to GLASS/WINDOWS/MIRRORS>REAR DOOR GLASS>INSTALLATION .
