Power Seat Memory System (Diagnostics): Electrical Component Location: Location

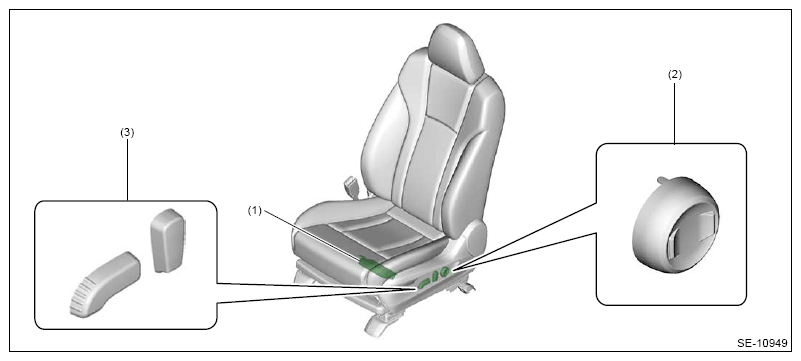

Courtesy of SUBARU OF AMERICA, INC.
(1)
Seat position memory Control Module
(2)
Lumbar switch
(3)
Power seat switch

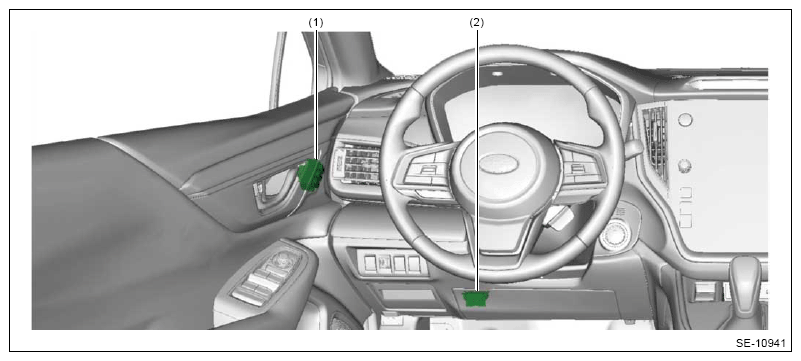

Courtesy of SUBARU OF AMERICA, INC.
(1)
Seat memory switch
(2)
Data link connector
