Front Speaker: Inspection: Tweeter

MODEL WITHOUT POWER AMPLIFIER

Check that no foreign matter has entered the speaker and that the speaker cone is not torn, deformed, or otherwise damaged.

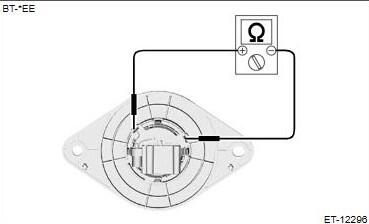

Measure the resistance between the speaker terminals.

Courtesy of SUBARU OF AMERICA, INC.

Specification:

2.88 - 4.32 Ω

MODEL WITH POWER AMPLIFIER

Check that no foreign matter has entered the speaker and that the speaker cone is not torn, deformed, or otherwise damaged.

Measure the resistance between the speaker terminals.

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Standard
4 - 3	Always	3.05 - 4.65 Ω
