Shift Lock Solenoid

Connect the shift lock solenoid terminal.

G13225525

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Wiring color
3	Blue
4	Black

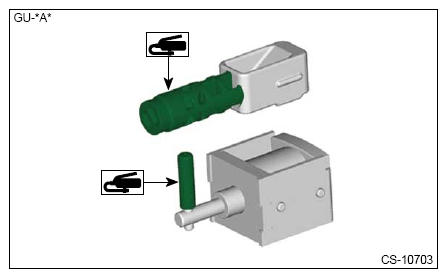

Apply grease to the shift lock and the shift lock solenoid.
Preparation items :

Grease: Multemp D No. 2 or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Install the shift lock.

Courtesy of SUBARU OF AMERICA, INC.

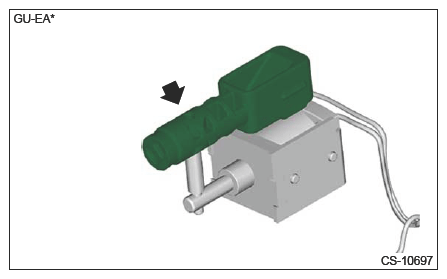

Install the shift lock solenoid to the select lever.
Install the connector to the select lever.
Install the select lever. Ref. to CONTROL SYSTEMS>SELECT LEVER>INSTALLATION .
