Internal Gear

  1. Remove the internal gear.

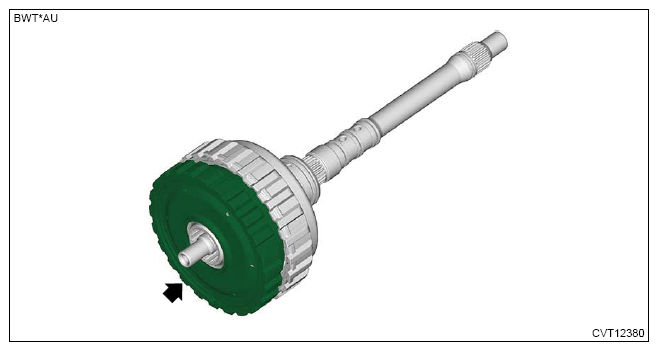

    G13936264Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the snap ring and thrust gear plate.

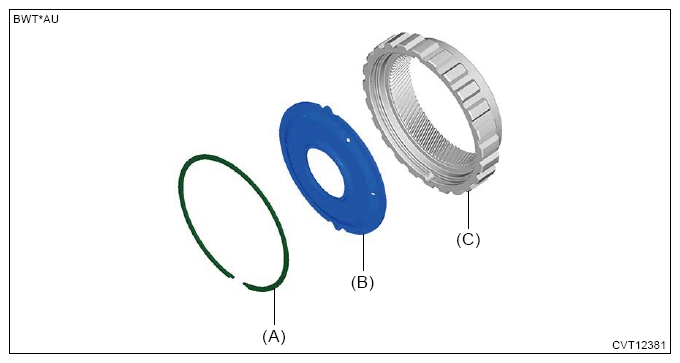

G16342351Courtesy of SUBARU OF AMERICA, INC.
(A) Snap ring
(B) Thrust gear plate
(C) Internal gear
