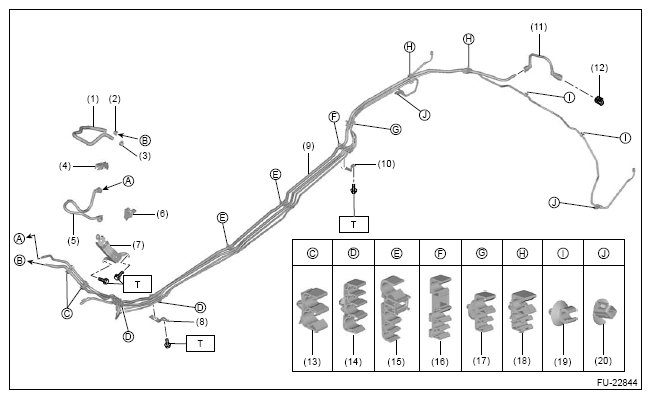

Fuel Line 1
| (1) | Evaporation hose |
| (2) | Clip |
| (3) | Clip |
| (4) | Fuel delivery tube clamp |
| (5) | Fuel delivery tube |
| (6) | Fuel delivery tube clamp |
| (7) | Fuel pipe bracket A |
| (8) | Fuel pipe bracket B |
| (9) | Fuel pipe ASSY |
| (10) | Fuel pipe bracket C |
| (11) | Purge tube |
| (12) | Retainer |
| (13) | Pipe clamp |
| (14) | Pipe clamp |
| (15) | Pipe clamp |
| (16) | Pipe clamp |
| (17) | Pipe clamp |
| (18) | Pipe clamp |
| (19) | Pipe clamp |
| (20) | Pipe clamp |
Tightening torque: N.m (kgf-m, ft-lb)
T: 18 (1.8, 13.3)
